HVD5-B20M-050-05

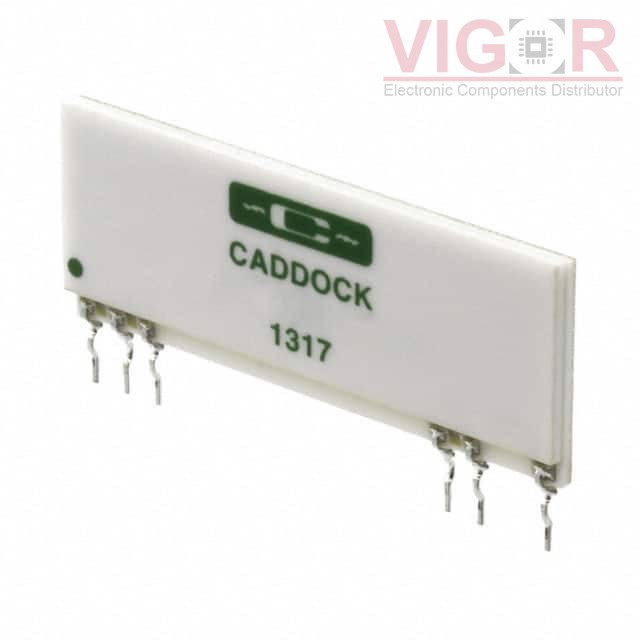

Image is for reference,
please contact us to get the real picture

Part No :: HVD5-B20M-050-05

Manufacturer: Caddock Electronics, Inc.

Description: RES NETWORK 2 RES MULT OHM 15SIP

Catalog: Arrays/Networks Resistors

DataSheet: HVD5-B20M-050-05 PDF

Availability: 0 pieces

Unit Price: ~~$44.31000~~

Current price of HVD5-B20M-050-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HVD5-B20M-050-05 Specifications

Type	Description
Series:	HVD
Package:	Bulk
Part Status:	Active
Circuit Type:	Voltage Divider
Resistance (Ohms):	200k, 19.8M
Tolerance:	±0.1%
Number of Resistors:	2
Resistor Matching Ratio:	±0.05%
Resistor-Ratio-Drift:	±5ppm/°C
Number of Pins:	6
Power Per Element:	31mW
Temperature Coefficient:	±30ppm/°C
Operating Temperature:	-40°C ~ 85°C
Applications:	Voltage Divider (TCR Matched)
Mounting Type:	Through Hole
Package / Case:	15-SIP, 6 Leads
Supplier Device Package:	-
Size / Dimension:	1.500" L x 0.110" W (38.10mm x 2.79mm)
Height - Seated (Max):	0.610" (15.50mm)
