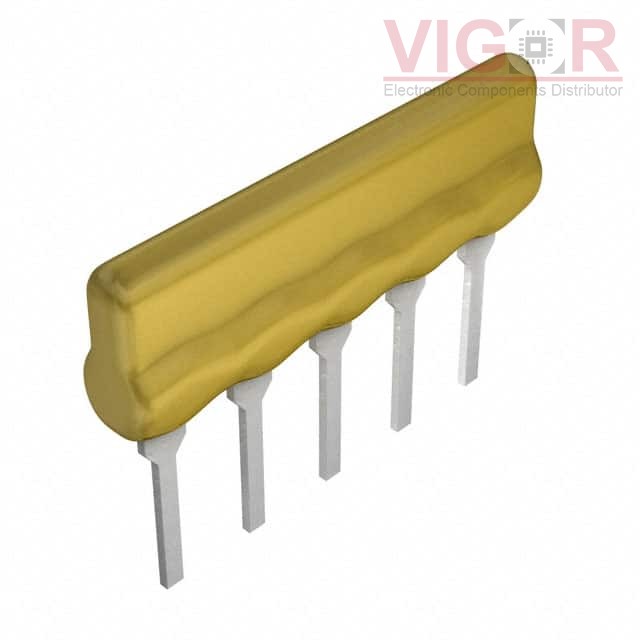

4605X-AP1-223LF

Part No :: 4605X-AP1-223LF

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 7825

Description: RES ARRAY 4 RES 22K OHM 5SIP

Catalog: Arrays/Networks Resistors

DataSheet: 4605X-AP1-223LF PDF

Country of origin: -

Date code: -

4605X-AP1-223LF Specifications

Type	Description
Series:	4600X
Package:	Tape & Box (TB)
Part Status:	Active
Circuit Type:	Bussed
Resistance (Ohms):	22k
Tolerance:	±2%
Number of Resistors:	4
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	5
Power Per Element:	200mW
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	-
Mounting Type:	Through Hole
Package / Case:	5-SIP
Supplier Device Package:	5-SIP
Size / Dimension:	0.498" L x 0.098" W (12.65mm x 2.49mm)
Height - Seated (Max):	0.200" (5.08mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 12 - Apr 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1091~~	~~$0.11~~
5000	~~$0.1091~~	~~$545.30~~

Current price of 4605X-AP1-223LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
