EXB-14V561JX

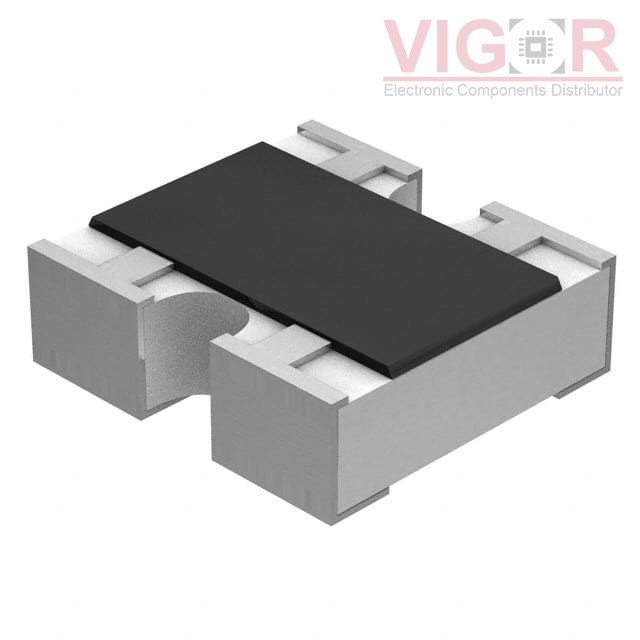

Image is for reference,
please contact us to get the real picture

Part No :: EXB-14V561JX

Manufacturer: Panasonic

Description: RES ARRAY 2 RES 560 OHM 0302

Catalog: Arrays/Networks Resistors

DataSheet: EXB-14V561JX PDF

Availability: 0 pieces

Unit Price: ~~$0.02688~~

Current price of EXB-14V561JX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EXB-14V561JX Specifications

Type	Description
Series:	EXB
Package:	Tape & Reel (TR)
Part Status:	Active
Circuit Type:	Isolated
Resistance (Ohms):	560
Tolerance:	±5%
Number of Resistors:	2
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	4
Power Per Element:	31mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	-
Mounting Type:	Surface Mount
Package / Case:	0302 (0805 Metric), Convex, Long Side Terminals
Supplier Device Package:	0302
Size / Dimension:	0.031" L x 0.024" W (0.80mm x 0.60mm)
Height - Seated (Max):	0.018" (0.45mm)
