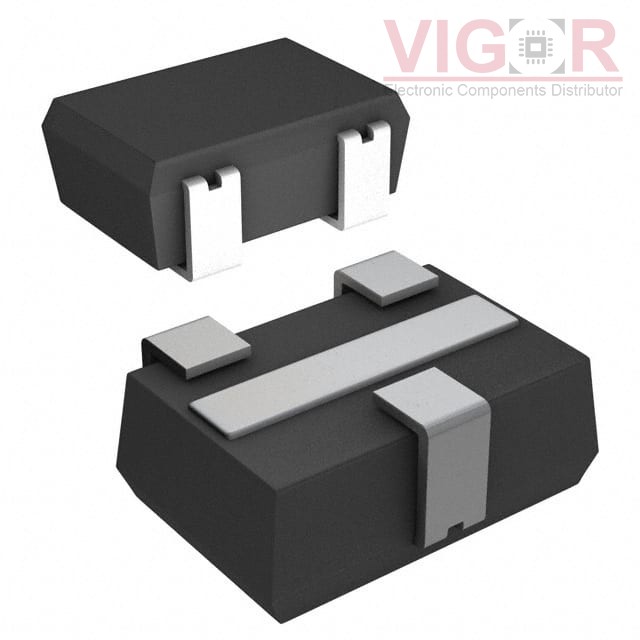

Y4485V0076BQ9W

Part No :: Y4485V0076BQ9W

Manufacturer: VPG Foil

VIGOR # :: 9301

Description: RES NETWORK 2 RES MULT OHM 1610

Catalog: Arrays/Networks Resistors

DataSheet: Y4485V0076BQ9W PDF

Country of origin: -

Date code: -

Y4485V0076BQ9W Specifications

Type	Description
Series:	DSMZ
Package:	Tray
Part Status:	Active
Circuit Type:	Voltage Divider
Resistance (Ohms):	200, 1k
Tolerance:	±0.1%
Number of Resistors:	2
Resistor Matching Ratio:	±0.02%
Resistor-Ratio-Drift:	±0.1ppm/°C
Number of Pins:	3
Power Per Element:	50mW
Temperature Coefficient:	±0.2ppm/°C
Operating Temperature:	-65°C ~ 125°C
Applications:	Voltage Divider (TCR Matched)
Mounting Type:	Surface Mount
Package / Case:	1610 J-Lead (3 Terminals)
Supplier Device Package:	-
Size / Dimension:	0.160" L x 0.106" W (4.06mm x 2.69mm)
Height - Seated (Max):	0.071" (1.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 28 - Feb 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.01~~	~~$12.01~~
1000	~~$11.06~~	~~$11 061.75~~

Current price of Y4485V0076BQ9W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
