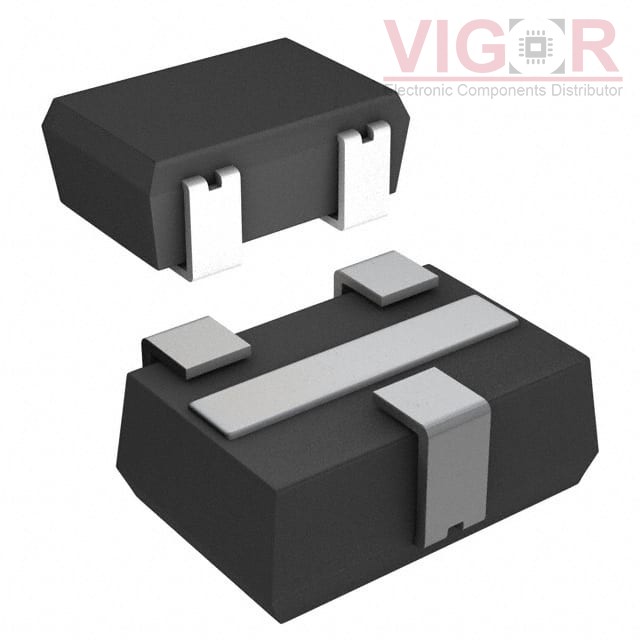

Y4485V0091BA9W

Part No :: Y4485V0091BA9W

Manufacturer: VPG Foil

Description: RES NETWORK 2 RES 500 OHM 1610

Catalog: Arrays/Networks Resistors

DataSheet: Y4485V0091BA9W PDF

Availability: 0 pieces

Current price of Y4485V0091BA9W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

Y4485V0091BA9W Specifications

Type	Description
Series:	DSMZ
Package:	Tray
Part Status:	Active
Circuit Type:	Voltage Divider
Resistance (Ohms):	500
Tolerance:	±0.1%
Number of Resistors:	2
Resistor Matching Ratio:	±0.05%
Resistor-Ratio-Drift:	±0.1ppm/°C
Number of Pins:	3
Power Per Element:	50mW
Temperature Coefficient:	±0.2ppm/°C
Operating Temperature:	-65°C ~ 125°C
Applications:	Voltage Divider (TCR Matched)
Mounting Type:	Surface Mount
Package / Case:	1610 J-Lead (3 Terminals)
Supplier Device Package:	-
Size / Dimension:	0.160" L x 0.106" W (4.06mm x 2.69mm)
Height - Seated (Max):	0.071" (1.80mm)
