ACASN1000U1000P1AT

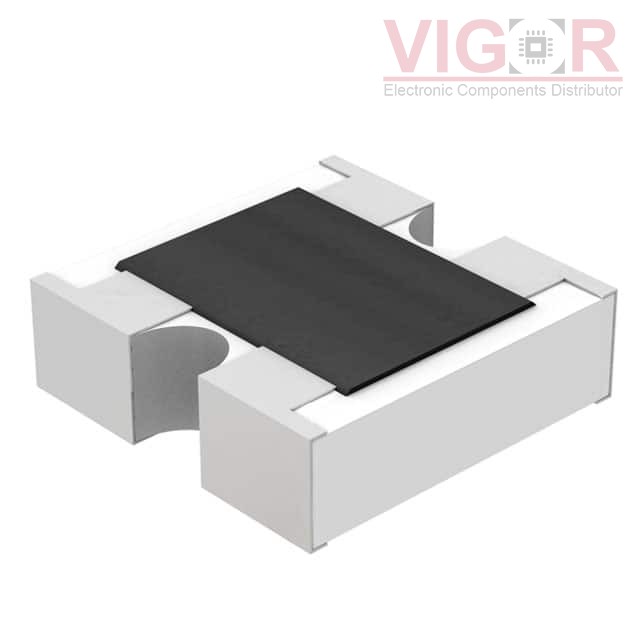

Image is for reference,
please contact us to get the real picture

Part No :: ACASN1000U1000P1AT

Manufacturer: Vishay / Beyschlag

Description: ACAS 0606 100R U 100R AT P1

Catalog: Arrays/Networks Resistors

DataSheet: ACASN1000U1000P1AT PDF

Availability: 341 pieces

Unit Price: ~~$1.39000~~

Current price of ACASN1000U1000P1AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACASN1000U1000P1AT Specifications

Type	Description
Series:	ACA - Precision
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit Type:	Isolated
Resistance (Ohms):	100
Tolerance:	±0.1%
Number of Resistors:	2
Resistor Matching Ratio:	±0.05%
Resistor-Ratio-Drift:	±5ppm/°C
Number of Pins:	4
Power Per Element:	125mW
Temperature Coefficient:	±10ppm/°C
Operating Temperature:	-55°C ~ 155°C
Applications:	Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting Type:	Surface Mount
Package / Case:	0606, Convex
Supplier Device Package:	0606
Size / Dimension:	0.063" L x 0.059" W (1.60mm x 1.50mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
