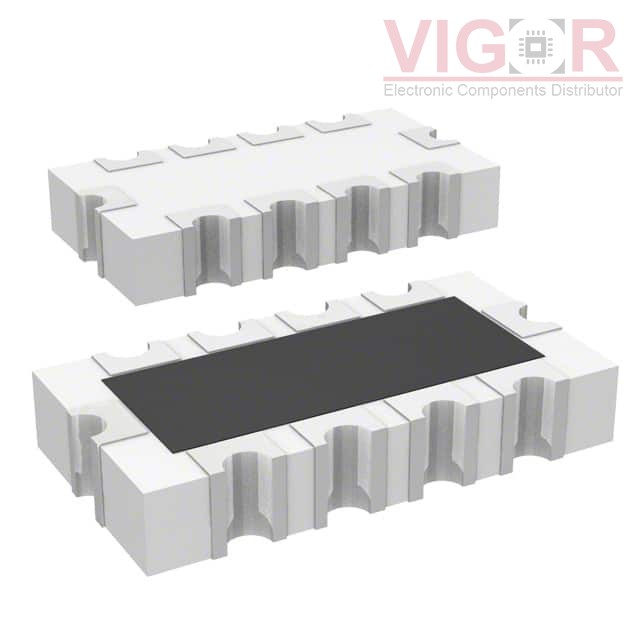

CAT25-564JALF

Part No :: CAT25-564JALF

Manufacturer: J.W. Miller / Bourns

Description: RES ARRAY 8 RES 560K OHM 1608

Catalog: Arrays/Networks Resistors

DataSheet: CAT25-564JALF PDF

Availability: 0 pieces

Current price of CAT25-564JALF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CAT25-564JALF Specifications

Type	Description
Series:	CAT25
Package:	Tape & Reel (TR)
Part Status:	Active
Circuit Type:	Bussed
Resistance (Ohms):	560k
Tolerance:	±5%
Number of Resistors:	8
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	10
Power Per Element:	62.5mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	-
Mounting Type:	Surface Mount
Package / Case:	1608, Concave, Long Side Terminals
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.083" W (4.00mm x 2.10mm)
Height - Seated (Max):	0.026" (0.65mm)
