RACF164DGT22R1

Part No :: RACF164DGT22R1

Manufacturer: Stackpole Electronics, Inc.

VIGOR # :: 4254132

Description: RES ARRAY 4 RES 22.1 OHM 1206

Catalog: Arrays/Networks Resistors

DataSheet: RACF164DGT22R1 PDF

Country of origin: -

Date code: -

RACF164DGT22R1 Specifications

Type	Description
Series:	RACF
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Circuit Type:	Isolated
Resistance (Ohms):	22.1
Tolerance:	±2%
Number of Resistors:	4
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	8
Power Per Element:	62.5mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Applications:	Automotive AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.030" (0.75mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 09 - Feb 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of RACF164DGT22R1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

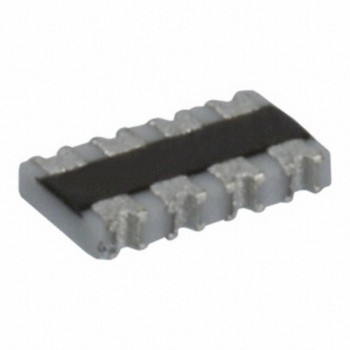

741C083390J

RES ARRAY 4 RES 39 OHM 0804

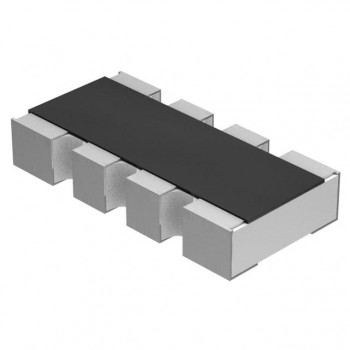

CRA04S08339K0JTD

RES ARRAY 4 RES 39K OHM 0804

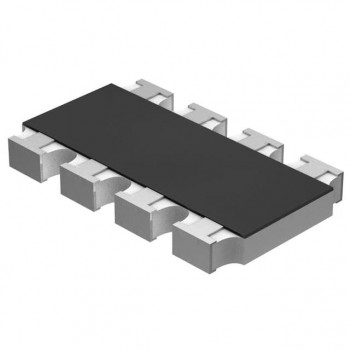

CRA12E08391R0JTR
