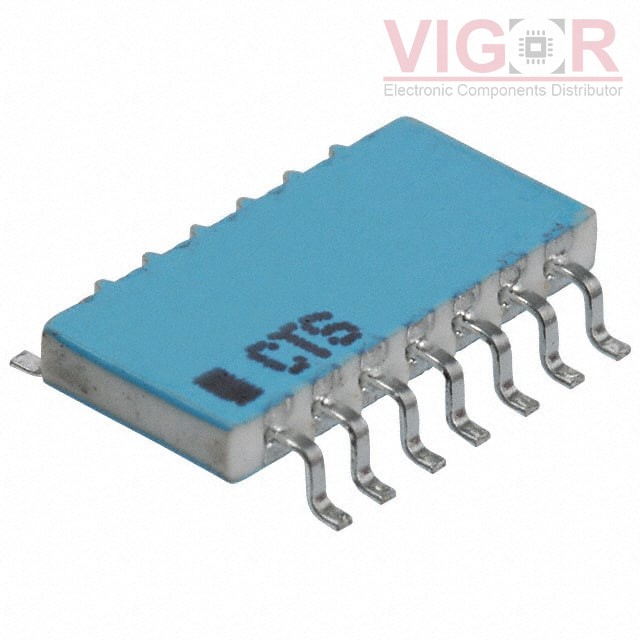

767141563G

Part No :: 767141563G

Manufacturer: CTS Corporation

VIGOR # :: 4254396

Description: RES ARRAY 13 RES 56K OHM 14SOIC

Catalog: Arrays/Networks Resistors

DataSheet: 767141563G PDF

Country of origin: -

Date code: -

767141563G Specifications

Type	Description
Series:	767
Package:	Tube
Part Status:	Obsolete
Circuit Type:	Bussed
Resistance (Ohms):	56k
Tolerance:	±2%
Number of Resistors:	13
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	14
Power Per Element:	100mW
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	-
Mounting Type:	Surface Mount
Package / Case:	14-SOIC (0.220", 5.59mm Width)
Supplier Device Package:	-
Size / Dimension:	0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max):	0.093" (2.36mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 13 - May 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 767141563G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
