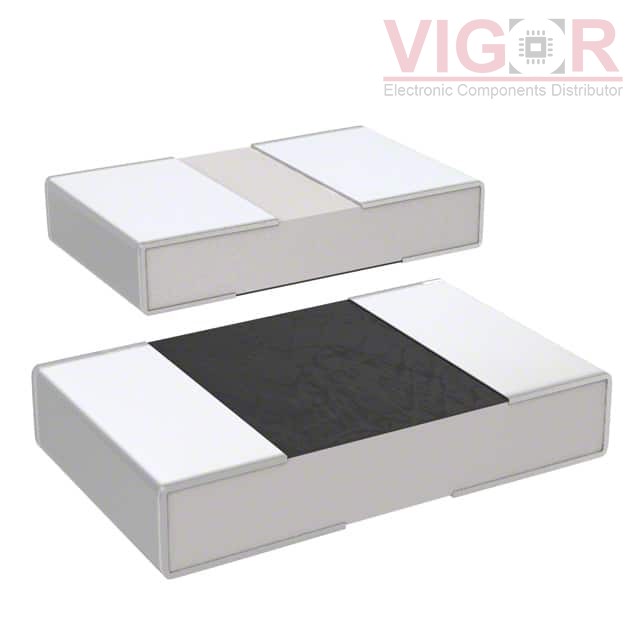

Part No :

M55342E11B8B06RWS

Manufacturer
Vishay / Dale
VIGOR # :

66644

Description
RES SMD 8.06KOHM 0.1% 1/20W 0402
Catalog
Chip Resistors-Surface Mount
DataSheet
M55342E11B8B06RWS PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:Military, MIL-PRF-55342, RM0402
Package:Tray
Part Status:Active
Resistance:8.06 kOhms
Tolerance:±0.1%
Power (Watts):0.05W, 1/20W
Composition:Thin Film
Features:Military, Non-Inductive
Temperature Coefficient:±25ppm/°C
Operating Temperature:-55°C ~ 150°C
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Ratings:-
Size / Dimension:0.040" L x 0.025" W (1.02mm x 0.64mm)
Height - Seated (Max):0.033" (0.84mm)
Number of Terminations:2
Failure Rate:R (0.01%)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $13.0720 $13.07
100 $5.2920 $529.20
1000 $4.5675 $4 567.50

Current price of M55342E11B8B06RWS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
