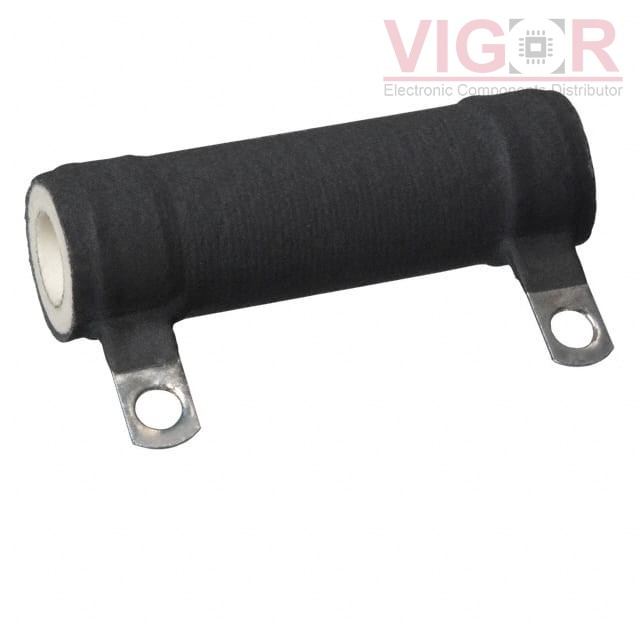

HL22507Z750R0JJ

Part No :: HL22507Z750R0JJ

Manufacturer: Vishay / Dale

VIGOR # :: 4342328

Description: RES CHAS MNT 750 OHM 5% 225W

Catalog: Resistors-Chassis Mount

DataSheet: HL22507Z750R0JJ PDF

Country of origin: -

Date code: -

HL22507Z750R0JJ Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Resistance:	750 Ohms
Tolerance:	±5%
Power (Watts):	225W
Composition:	Wirewound
Temperature Coefficient:	±30ppm/°C
Operating Temperature:	-55°C ~ 350°C
Features:	Moisture Resistant
Coating, Housing Type:	Silicone Coated
Mounting Feature:	Brackets (not included)
Size / Dimension:	1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max):	-
Lead Style:	Solder Lugs
Package / Case:	Radial, Tubular
Failure Rate:	-
