2116240001

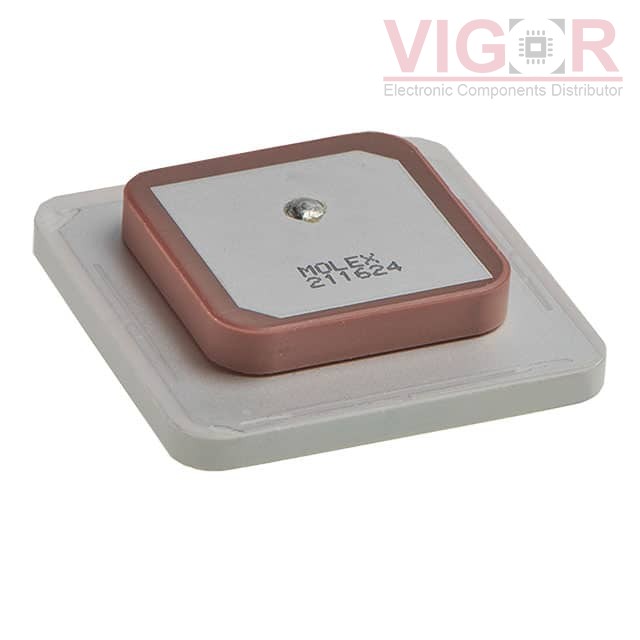

Image is for reference,
please contact us to get the real picture

Part No :: 2116240001

Manufacturer: Woodhead - Molex

Description: GPS L1/L5 & GLONASS 36MM STACKED

Catalog: RF Antennas

DataSheet: 2116240001 PDF

Availability: 349 pieces

Unit Price: ~~$10.65000~~

Current price of 2116240001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2116240001 Specifications

Type	Description
Series:	211624
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.176GHz, 1.575GHz, 1.602GHz
Frequency Range:	1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz
Antenna Type:	Ceramic Patch
Number of Bands:	3
VSWR:	-
Return Loss:	-10dB
Gain:	2.1dBi, 4.5dBi, 4.2dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.276" (7.00mm)
Applications:	GLONASS, GPS
