APARM1504-SG3

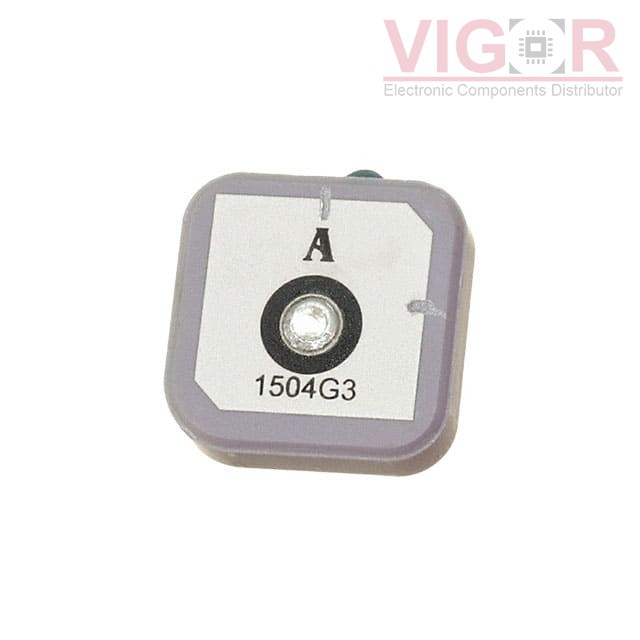

Image is for reference,
please contact us to get the real picture

Part No :: APARM1504-SG3

Manufacturer: Abracon

Description: RF ANT MULTIBAND GNSS CER PATCH

Catalog: RF Antennas

DataSheet: APARM1504-SG3 PDF

Availability: 1515 pieces

Unit Price: ~~$5.46000~~

Current price of APARM1504-SG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APARM1504-SG3 Specifications

Type	Description
Series:	APAR
Package:	Bulk
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.602GHz
Frequency Range:	1.561GHz ~ 1.602GHz
Antenna Type:	Ceramic Patch
Number of Bands:	3
VSWR:	1.8
Return Loss:	-
Gain:	-3dBi, -4.5dBi, 0.8dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Through Hole
Height (Max):	0.157" (4.00mm)
Applications:	Beidou, Galileo, GLONASS, GNSS, GPS
