APAE1575R1540AZDB2F-T

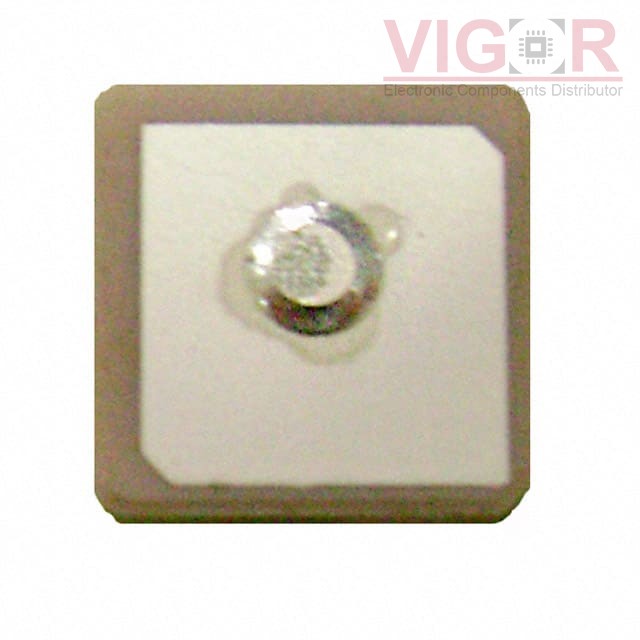

Image is for reference,
please contact us to get the real picture

Part No :: APAE1575R1540AZDB2F-T

Manufacturer: Abracon

Description: RF ANT 1.575GHZ CER PATCH PIN

Catalog: RF Antennas

DataSheet: APAE1575R1540AZDB2F-T PDF

Availability: 4465 pieces

Unit Price: ~~$1.72000~~

Current price of APAE1575R1540AZDB2F-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APAE1575R1540AZDB2F-T Specifications

Type	Description
Series:	APAE
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz
Frequency Range:	1.575GHz ~ 1.579GHz
Antenna Type:	Ceramic Patch
Number of Bands:	1
VSWR:	1.5
Return Loss:	-15dB
Gain:	1.2dBic
Power - Max:	-
Features:	-
Termination:	Pin
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.185" (4.70mm)
Applications:	GPS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4465

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.72000	$1.72
10	$1.55532	$15.5532
25	$1.38844	$34.711
100	$1.24956	$124.956
250	$1.11068	$277.67
500	$0.97185	$485.925
1000	$0.80524	$805.24
2500	$0.74971	$1874.275
5000	$0.72194	$3609.7
