APAGM2704A-C2G

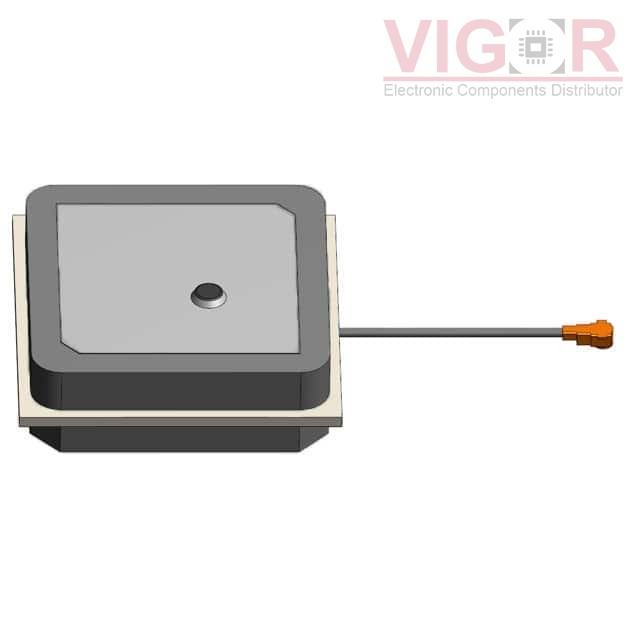

Product image
Product thumb
Part No :

APAGM2704A-C2G

Manufacturer
Abracon
VIGOR # :

4070244

Description
RF ANT GNSS/GPS/GLONA ACT PATCH
Catalog
RF Antennas
DataSheet
APAGM2704A-C2G PDF
Country of origin
-
Date code
-
ads
APAGM2704A-C2G Specifications
Type Description
Series:APAG
Package:Tray
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.575GHz, 1.601GHz
Frequency Range:1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz
Antenna Type:Ceramic Patch
Number of Bands:2
VSWR:1.02, 1.03
Return Loss:-35.1dB, -37.9dB
Gain:4.5dBi
Power - Max:-
Features:Cable - 30mm, LNA
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.157" (4.00mm)
Applications:GLONASS, GNSS, GPS
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 105
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $11.85 $11.85
10 $10.77 $107.72
30 $9.96 $298.93
120 $9.16 $1 098.77
270 $8.35 $2 254.08
510 $7.81 $3 983.03
1020 $7.16 $7 306.80

Current price of APAGM2704A-C2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
