ACAR0301-SG3

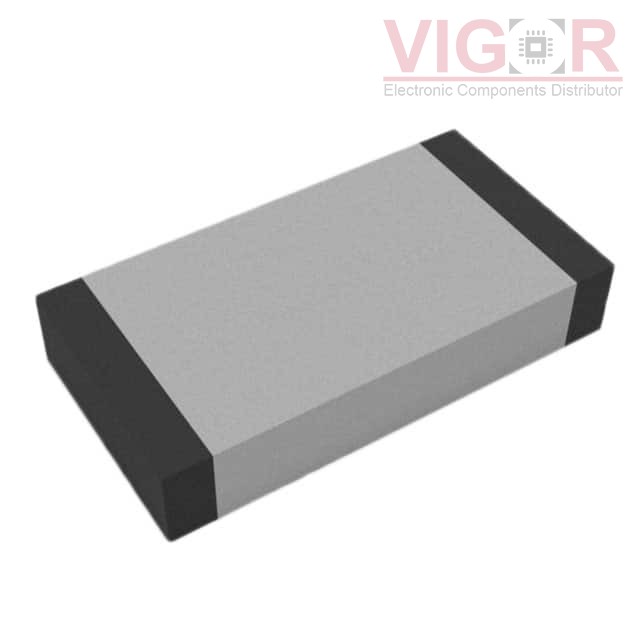

Image is for reference,
please contact us to get the real picture

Part No :: ACAR0301-SG3

Manufacturer: Abracon

Description: RF ANT 1561~1610 MHZ CHIP SLD

Catalog: RF Antennas

DataSheet: ACAR0301-SG3 PDF

Availability: 4762 pieces

Unit Price: ~~$0.80000~~

Current price of ACAR0301-SG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACAR0301-SG3 Specifications

Type	Description
Series:	ACAR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.602GHz
Frequency Range:	1.561GHz ~ 1.61GHz
Antenna Type:	Chip
Number of Bands:	3
VSWR:	2
Return Loss:	-
Gain:	1.69dBi, -1.81dBi, 1.43dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.022" (0.55mm)
Applications:	Beidou, GLONASS, GPS

Please confirm the specifications of the products when ordering.
