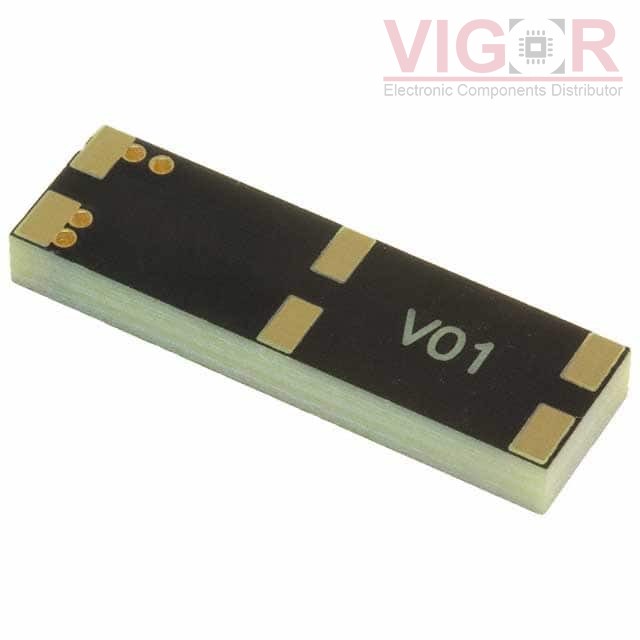

W3544B

Part No :: W3544B

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4070634

Description: RF ANT 850MHZ/900MHZ CHIP SLD

Catalog: RF Antennas

DataSheet: W3544B PDF

Country of origin: -

Date code: -

W3544B Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Cellular
Frequency Group:	Wide Band
Frequency (Center/Band):	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range:	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type:	Chip
Number of Bands:	5
VSWR:	-
Return Loss:	-6.5dB, -5.7dB, -18.5dB, -13dB
Gain:	-1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.118" (3.00mm)
Applications:	GSM

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3831

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.21~~	~~$2.21~~
140	~~$1.69~~	~~$236.25~~
280	~~$1.50~~	~~$420.00~~
700	~~$1.31~~	~~$918.75~~
980	~~$1.18~~	~~$1 161.30~~
1400	~~$1.09~~	~~$1 522.50~~
3500	~~$1.01~~	~~$3 543.75~~
7000	~~$0.98~~	~~$6 825.00~~

Current price of W3544B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SR4I052

VELOX ISM 868/915MHZ SMD ANTENNA

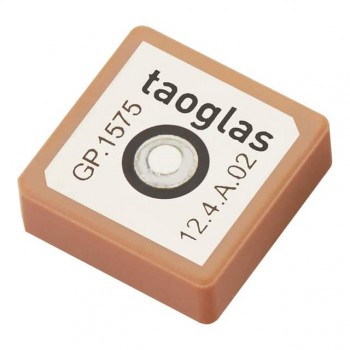

GP.1575.12.4.A.02
