AN150201-01H

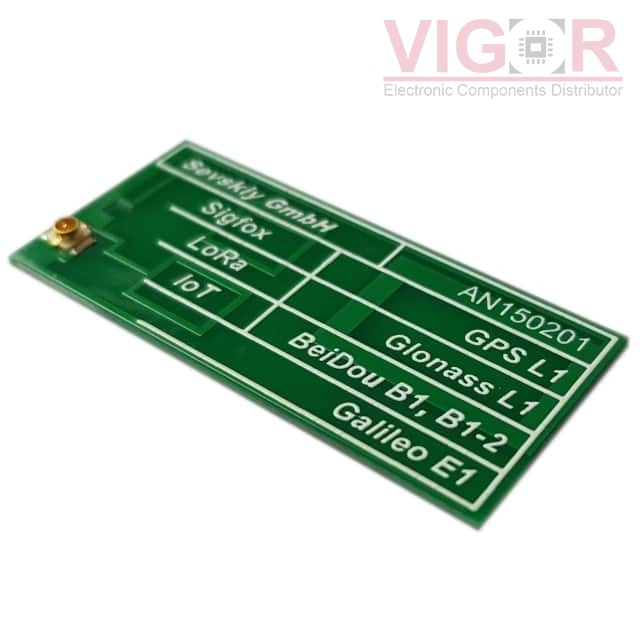

Product image
Product thumb
Part No :

AN150201-01H

Manufacturer
Sevskiy GmbH
VIGOR # :

4070715

Description
RF ANT 915MHZ/1575MHZ/2GHZ PCB
Catalog
RF Antennas
DataSheet
AN150201-01H PDF
Country of origin
-
Date code
-
ads
AN150201-01H Specifications
Type Description
Series:AN150201
Package:Bulk
Part Status:Active
RF Family/Standard:Cellular, General ISM
Frequency Group:UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band):868MHz, 915MHz, 1.575GHz, 2GHz
Frequency Range:860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz
Antenna Type:PCB Trace
Number of Bands:3
VSWR:3, 3, 3
Return Loss:-6dB, -6dB, -6dB
Gain:1.2dBi, 1.4dBi, 1.1dBi
Power - Max:10 W
Features:-
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Connector Mount
Height (Max):0.039" (1.00mm)
Applications:2G, 3G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, NB-IoT, UMTS
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 254
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.69 $2.69

Current price of AN150201-01H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
