2136020001

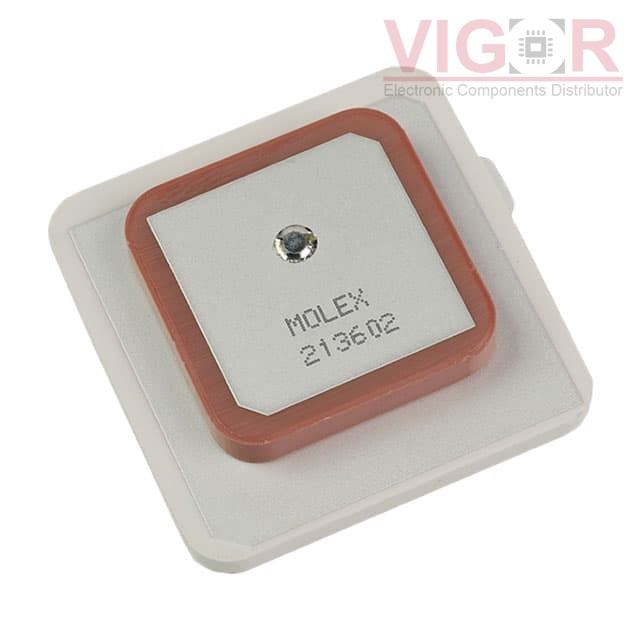

Image is for reference,
please contact us to get the real picture

Part No :: 2136020001

Manufacturer: Woodhead - Molex

Description: ANTENNA GPS L1/L2 STACKED

Catalog: RF Antennas

DataSheet: 2136020001 PDF

Availability: 64 pieces

Unit Price: ~~$10.98000~~

Current price of 2136020001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2136020001 Specifications

Type	Description
Series:	213602
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.2275GHz, 1.575GHz
Frequency Range:	1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz
Antenna Type:	Ceramic Patch
Number of Bands:	2
VSWR:	-
Return Loss:	-15dB
Gain:	2.1dBi, 5.3dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.276" (7.00mm)
Applications:	GLONASS, GNSS, GPS

Please confirm the specifications of the products when ordering.
