1052630001

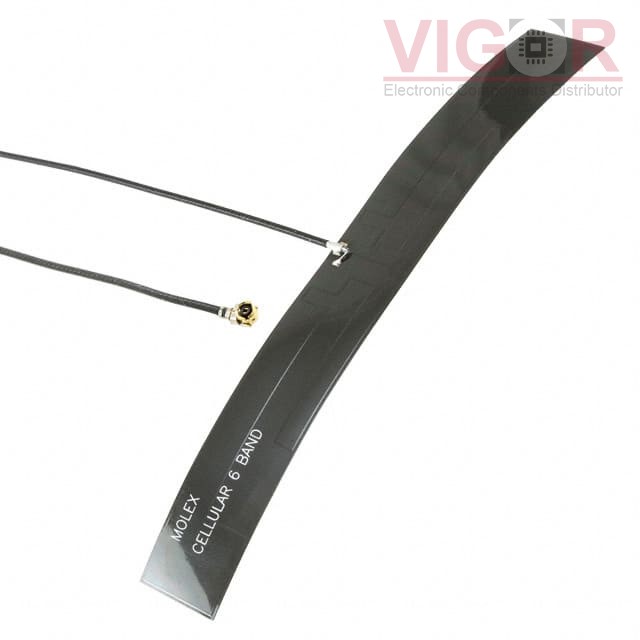

Product image
Product thumb
Part No :

1052630001

Manufacturer
Woodhead - Molex
VIGOR # :

4071468

Description
RF ANT 850/900MHZ FLAT 100MM
Catalog
RF Antennas
DataSheet
1052630001 PDF
Country of origin
-
Date code
-
ads
1052630001 Specifications
Type Description
Series:105263
Package:Tray
Part Status:Active
RF Family/Standard:Cellular
Frequency Group:Wide Band
Frequency (Center/Band):850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz
Frequency Range:824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
Antenna Type:Flat Patch
Number of Bands:6
VSWR:-
Return Loss:-6.8dB, -7dB, -7.5dB, -10dB, -10.5dB
Gain:2dBi, 2.2dBi, 2.3dBi, 3.1dBi
Power - Max:2 W
Features:Cable - 100mm
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.004" (0.10mm)
Applications:GSM, LTE, UMTS
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2018
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.61 $5.61
10 $5.02 $50.15
25 $4.51 $112.86
100 $4.11 $411.27
416 $3.71 $1 543.95
832 $3.01 $2 503.70
1248 $2.81 $3 505.18
2912 $2.67 $7 769.86
5408 $2.57 $13 887.26

Current price of 1052630001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
