SZP-C-0G02

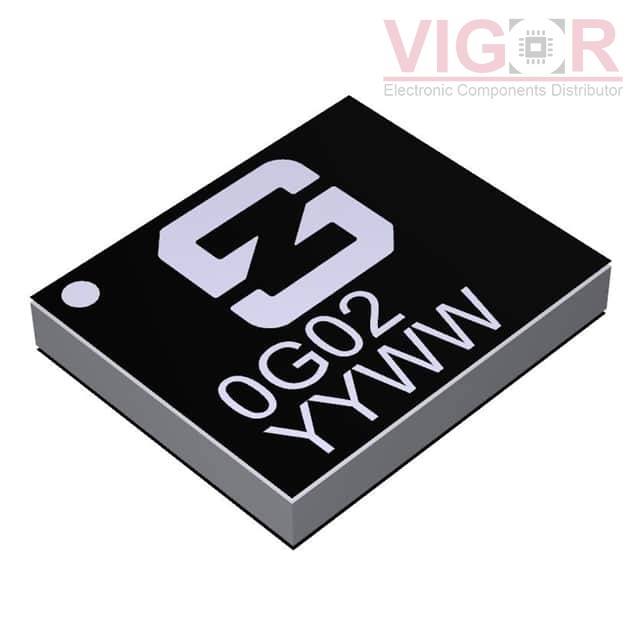

Image is for reference,
please contact us to get the real picture

Part No :: SZP-C-0G02

Manufacturer: Synzen

Description: GNSS ANT 1.559-1.61GHZ SMD CHIP

Catalog: RF Antennas

DataSheet: SZP-C-0G02 PDF

Availability: 3000 pieces

Unit Price: ~~$2.40000~~

Current price of SZP-C-0G02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SZP-C-0G02 Specifications

Type	Description
Series:	LODESTAR
Package:	Tape & Reel (TR)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.602GHz
Frequency Range:	1.559GHz ~ 1.610GHz
Antenna Type:	Chip
Number of Bands:	1
VSWR:	1.5
Return Loss:	-12dB
Gain:	0.5dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.035" (0.90mm)
Applications:	Beidou, Galileo, GLONASS, GPS

Please confirm the specifications of the products when ordering.
