W3011A

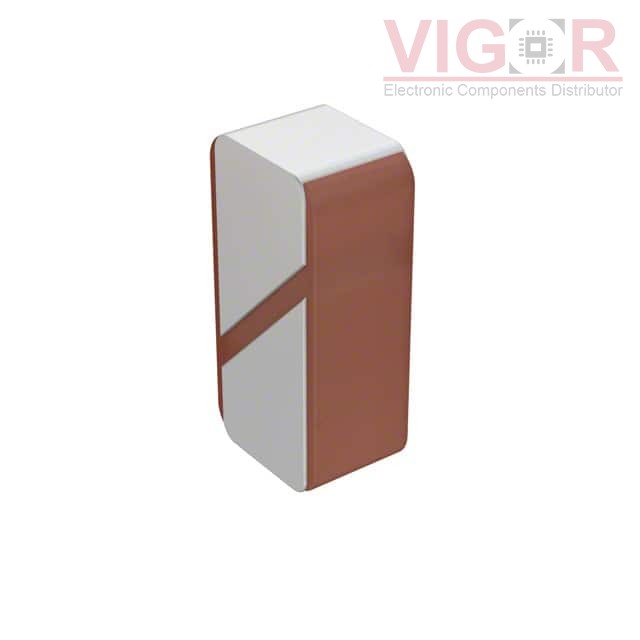

Product image
Product thumb
Part No :

W3011A

Manufacturer
PulseLarsen Antenna
VIGOR # :

4072667

Description
RF ANT 1.575GHZ CHIP SOLDER SMD
Catalog
RF Antennas
DataSheet
W3011A PDF
Country of origin
-
Date code
-
ads
W3011A Specifications
Type Description
Series:Ceramic Chip Antenna
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.561GHz, 1.5755GHz, 1.602GHz
Frequency Range:1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz
Antenna Type:Chip
Number of Bands:3
VSWR:-
Return Loss:-7dB, -10dB, -10dB
Gain:1.3dBi, 2dBi, 2.2dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.043" (1.10mm)
Applications:Beidou, Galileo, GLONASS, GNSS, GPS
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 8541
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.5300 $1.53
3000 $0.6589 $1 976.79
6000 $0.6345 $3 807.18
15000 $0.6101 $9 151.80

Current price of W3011A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
