ACAG0301-24505500-T

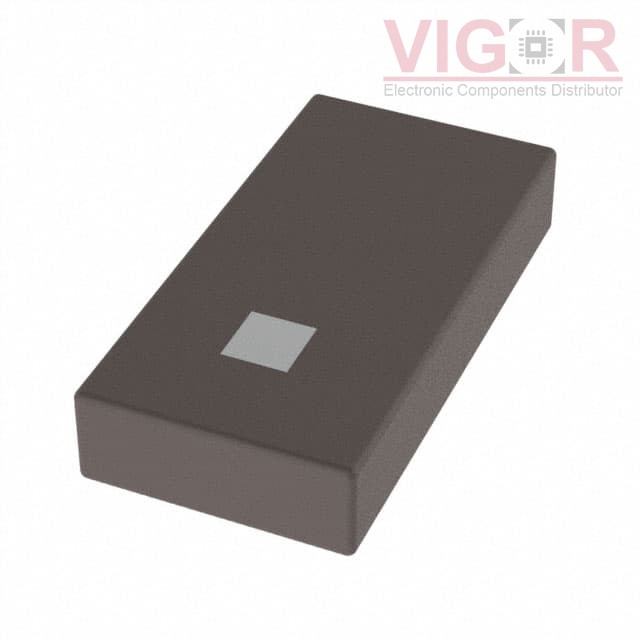

Image is for reference,
please contact us to get the real picture

Part No :: ACAG0301-24505500-T

Manufacturer: Abracon

Description: RF ANT 2.4GHZ/5.5GHZ CHIP SLD

Catalog: RF Antennas

DataSheet: ACAG0301-24505500-T PDF

Availability: 2118 pieces

Unit Price: ~~$1.84000~~

Current price of ACAG0301-24505500-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACAG0301-24505500-T Specifications

Type	Description
Series:	ACAG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Bluetooth, General ISM, WiFi
Frequency Group:	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):	2.4GHz, 5.5GHz
Frequency Range:	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Antenna Type:	Chip
Number of Bands:	2
VSWR:	-
Return Loss:	-7dB, -7dB
Gain:	2.23dBi, 4.05dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.047" (1.20mm)
Applications:	Bluetooth, ISM, Wi-Fi
