1513634-1

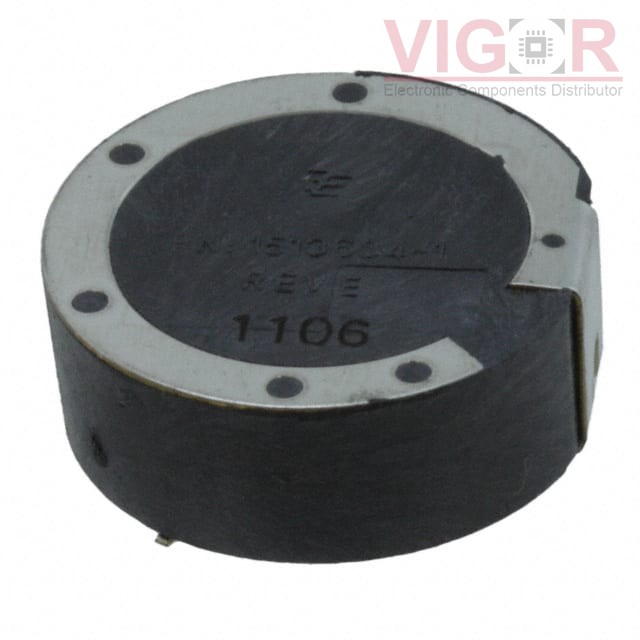

Image is for reference,
please contact us to get the real picture

Part No :: 1513634-1

Manufacturer: TE Connectivity AMP Connectors

Description: RF ANT 1.575GHZ PUCK SOLDER SMD

Catalog: RF Antennas

DataSheet: 1513634-1 PDF

Availability: 6918 pieces

Unit Price: ~~$1.93000~~

Current price of 1513634-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1513634-1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz
Frequency Range:	1.565GHz ~ 1.585GHz
Antenna Type:	Puck
Number of Bands:	1
VSWR:	3
Return Loss:	-
Gain:	0dBi
Power - Max:	10 W
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.238" (6.05mm)
Applications:	GPS

Please confirm the specifications of the products when ordering.
