APARM3503-SG3

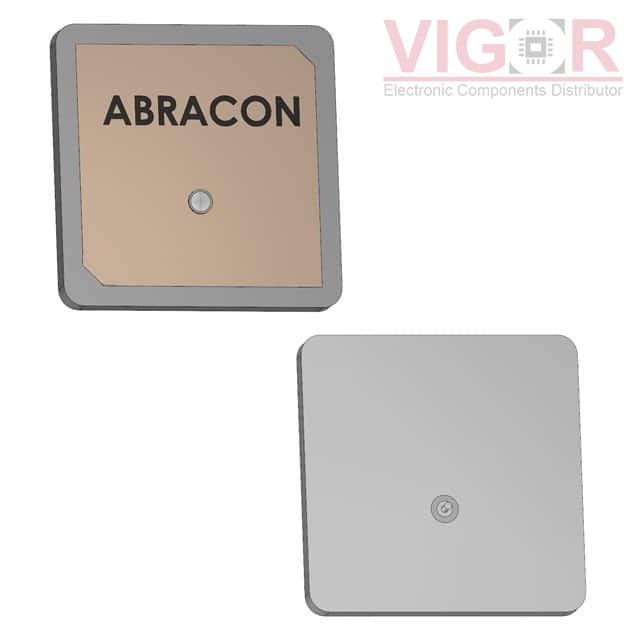

Image is for reference,
please contact us to get the real picture

Part No :: APARM3503-SG3

Manufacturer: Abracon

Description: GNSS/GPS/GLONASS/BEIDOU PTCH ANT

Catalog: RF Antennas

DataSheet: APARM3503-SG3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of APARM3503-SG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APARM3503-SG3 Specifications

Type	Description
Series:	APARM
Package:	Bulk
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	Wide Band
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.598GHz, 1.602GHz
Frequency Range:	1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.592GHz ~ 1.604GHz, 1.597GHz ~ 1.607GHz
Antenna Type:	Ceramic Patch
Number of Bands:	4
VSWR:	1.8
Return Loss:	-10dB
Gain:	3dBi, 4dBi, 4.5dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.118" (3.00mm)
Applications:	Beidou, Galileo, GLONASS, GNSS, GPS

Please confirm the specifications of the products when ordering.
