ADRF5026SCCZ-EP

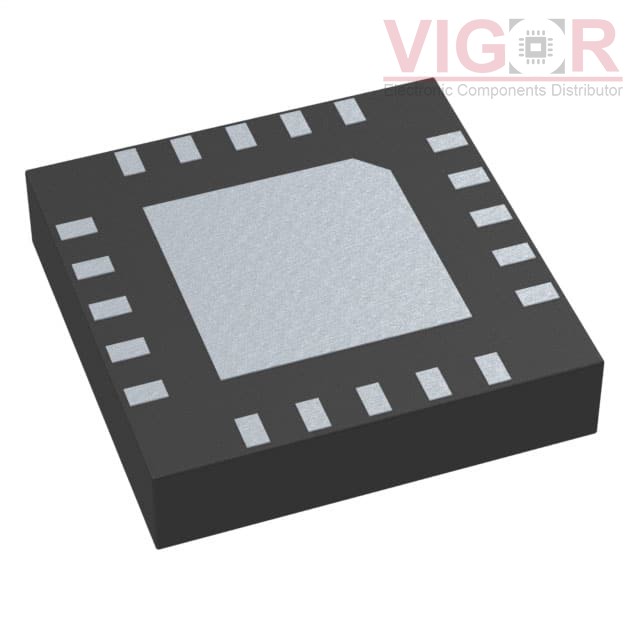

Image is for reference,
please contact us to get the real picture

Part No :: ADRF5026SCCZ-EP

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: HIGH ISOLATION SPDT,40GHZ,FAST S

Catalog: RF Switches

DataSheet: ADRF5026SCCZ-EP PDF

Availability: 5 pieces

Unit Price: ~~$140.24000~~

Current price of ADRF5026SCCZ-EP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADRF5026SCCZ-EP Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
RF Type:	Cellular, Radar, VSAT
Topology:	Absorptive
Circuit:	SPDT
Frequency Range:	100MHz ~ 44GHz
Isolation:	45dB
Insertion Loss:	3.8dB
Test Frequency:	44GHz
P1dB:	27dBm
IIP3:	53dBm
Features:	-
Impedance:	50Ohm
Voltage - Supply:	3.15V ~ 3.45V
Operating Temperature:	-55°C ~ 105°C
Package / Case:	20-WFLGA Exposed Pad
Supplier Device Package:	20-LGA (3x3)
