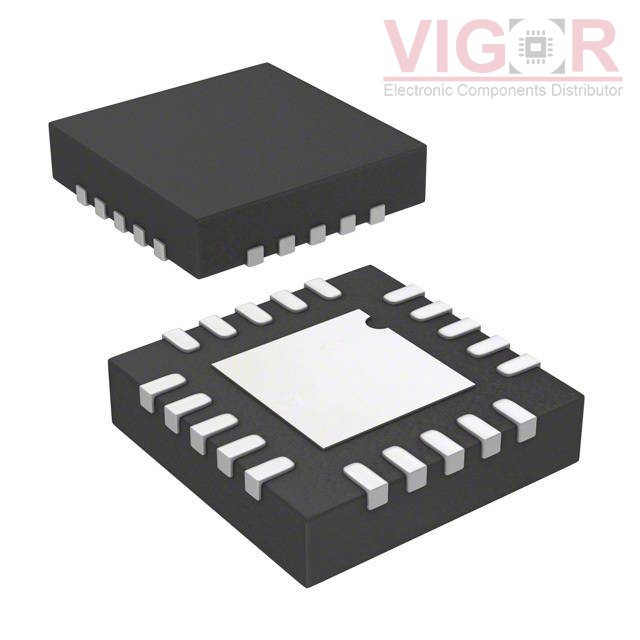

SPIRIT1QTR

Part No :: SPIRIT1QTR

Manufacturer: STMicroelectronics

Description: IC RF TXRX ISM<1GHZ 20VFQFN

Catalog: RF Transceiver ICs

DataSheet: SPIRIT1QTR PDF

Availability: 6 pieces

Current price of SPIRIT1QTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SPIRIT1QTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	TxRx Only
RF Family/Standard:	General ISM < 1GHz
Protocol:	-
Modulation:	2FSK, ASK, GFSK, GMSK, MSK, OOK
Frequency:	150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz
Data Rate (Max):	500kbps
Power - Output:	16dBm
Sensitivity:	-118dBm
Memory Size:	-
Serial Interfaces:	SPI
GPIO:	4
Voltage - Supply:	1.8V ~ 3.6V
Current - Receiving:	9.2mA ~ 9.8mA
Current - Transmitting:	6mA ~ 54mA
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	20-VFQFN Exposed Pad
Supplier Device Package:	20-QFN (4x4)
