JN5169/001K

Part No :: JN5169/001K

Manufacturer: NXP Semiconductors

VIGOR # :: 4074819

Description: IC RF TXRX+MCU 802.15.4 40VFQFN

Catalog: RF Transceiver ICs

DataSheet: JN5169/001K PDF

Country of origin: -

Date code: -

JN5169/001K Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	TxRx + MCU
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	-
Frequency:	2.4GHz
Data Rate (Max):	-
Power - Output:	10dBm
Sensitivity:	-96dBm
Memory Size:	512kB Flash, 4kB EEPROM, 32kB RAM
Serial Interfaces:	I²C, SPI, UART
GPIO:	20
Voltage - Supply:	2V ~ 3.6V
Current - Receiving:	14.7mA
Current - Transmitting:	23mA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	40-VFQFN Exposed Pad
Supplier Device Package:	40-HVQFN (6x6)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 313

Shipped from

HK warehouse

Expected Shipping Date

Jan 10 - Jan 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.73~~	~~$5.73~~
10	~~$5.12~~	~~$51.20~~
25	~~$4.61~~	~~$115.20~~
100	~~$4.20~~	~~$419.84~~
500	~~$3.40~~	~~$1 699.82~~
1000	~~$2.87~~	~~$2 867.16~~

Current price of JN5169/001K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

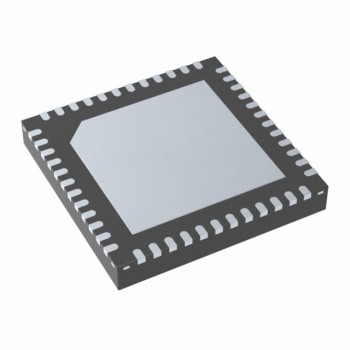

CC2652R1FRGZT

IC RF TXRX 802.15.4 48VQFN

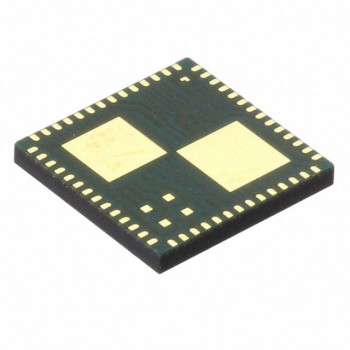

MKW01Z128CHN
