WYSACVLAY-XZ

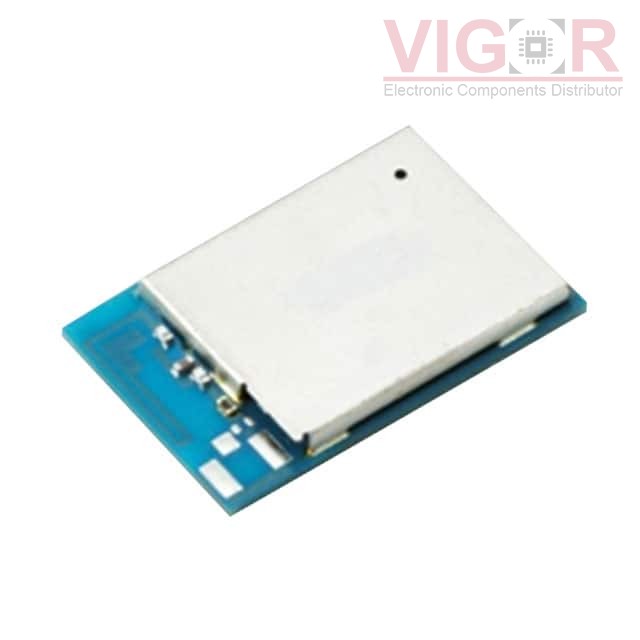

Image is for reference,
please contact us to get the real picture

Part No :: WYSACVLAY-XZ

Manufacturer: TAIYO YUDEN

Description: WIFI MODULE WITH ANTENNA B/G/N

Catalog: RF Transceiver Modules and Modems

DataSheet: WYSACVLAY-XZ PDF

Availability: 789 pieces

Unit Price: ~~$20.26000~~

Current price of WYSACVLAY-XZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WYSACVLAY-XZ Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
RF Family/Standard:	WiFi
Protocol:	802.11b/g/n
Modulation:	-
Frequency:	2.412GHz ~ 2.462GHz
Data Rate:	115.2kbps
Power - Output:	15dBm
Sensitivity:	-86dBm
Serial Interfaces:	I²C, SPI, UART
Antenna Type:	Integrated, Trace
Utilized IC / Part:	MW320
Memory Size:	512kB SRAM
Voltage - Supply:	3V ~ 3.6V
Current - Receiving:	82mA
Current - Transmitting:	165mA
Mounting Type:	Surface Mount
Operating Temperature:	-30°C ~ 85°C
Package / Case:	44-SMD Module
