CYBLE-014008-00

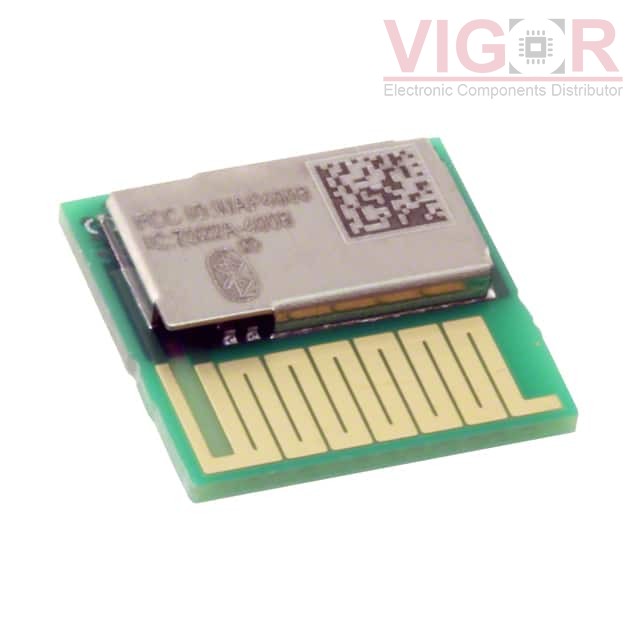

Image is for reference,
please contact us to get the real picture

Part No :: CYBLE-014008-00

Manufacturer: Cypress Semiconductor

Description: RX TXRX MODULE BT TRC ANT SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: CYBLE-014008-00 PDF

Availability: 944 pieces

Unit Price: ~~$15.50000~~

Current price of CYBLE-014008-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CYBLE-014008-00 Specifications

Type	Description
Series:	EZ-BLE™ PSoC®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Bluetooth
Protocol:	Bluetooth v4.1
Modulation:	-
Frequency:	2.4GHz
Data Rate:	1Mbps
Power - Output:	3dBm
Sensitivity:	-87dBm
Serial Interfaces:	I²C, SPI, UART
Antenna Type:	Integrated, Trace
Utilized IC / Part:	-
Memory Size:	128kB Flash, 16kB SRAM
Voltage - Supply:	1.7V ~ 5.5V
Current - Receiving:	16.4mA ~ 21.5mA
Current - Transmitting:	12.5mA ~ 20mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	32-SMD Module
