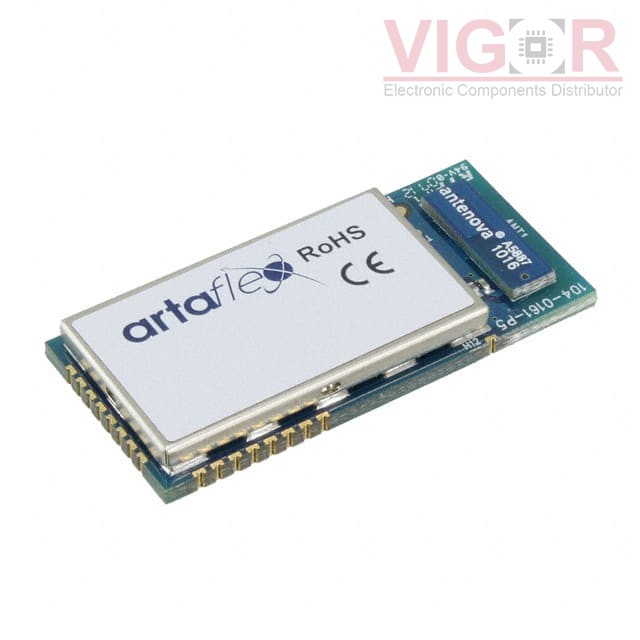

AW24TH-C-SM

Part No :: AW24TH-C-SM

Manufacturer: Artaflex Inc.

VIGOR # :: 4068424

Description: RX TXRX MODULE 802.15.4 CHIP SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: AW24TH-C-SM PDF

Country of origin: -

Date code: -

AW24TH-C-SM Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	-
Frequency:	2.4GHz
Data Rate:	250kbps
Power - Output:	24.2dBm
Sensitivity:	-105dBm
Serial Interfaces:	SPI, UART
Antenna Type:	Integrated, Chip
Utilized IC / Part:	-
Memory Size:	256kB Flash, 8kB RAM
Voltage - Supply:	2.7V ~ 3.6V
Current - Receiving:	24mA
Current - Transmitting:	29mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	Module

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 100

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$39.63~~	~~$39.63~~
10	~~$36.95~~	~~$369.50~~
25	~~$34.27~~	~~$856.80~~
100	~~$32.13~~	~~$3 213.00~~

Current price of AW24TH-C-SM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

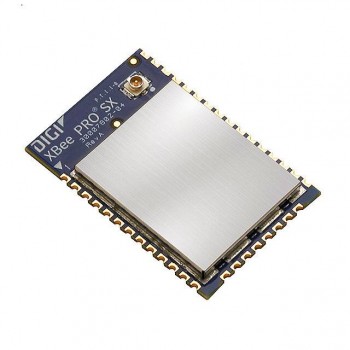

XB8X-DMUS-001

RX TXRX MOD ISM < 1GHZ U.FL SMD

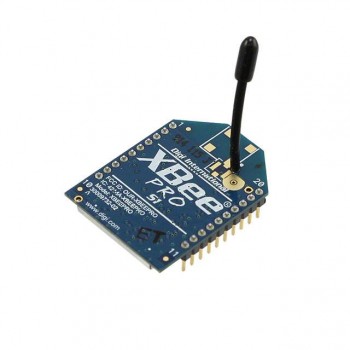

XBP24-AWI-001J

RX TXRX MOD 802.15.4 WIRE ANT TH

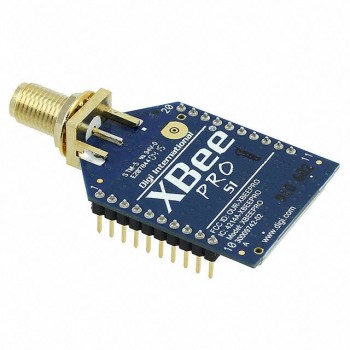

XBP24-DMSIT-250J
