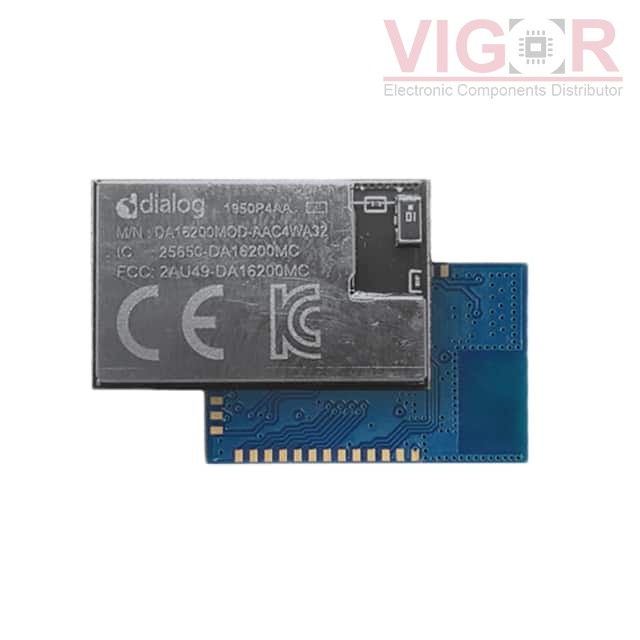

DA16200MOD-AAC4WA32

Part No :: DA16200MOD-AAC4WA32

Manufacturer: Dialog Semiconductor

VIGOR # :: 4068471

Description: DA16200 WIFI MODULE CHIP ANTENNA

Catalog: RF Transceiver Modules and Modems

DataSheet: DA16200MOD-AAC4WA32 PDF

Country of origin: -

Date code: -

DA16200MOD-AAC4WA32 Specifications

Type	Description
Series:	DA16200MOD-AA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	WiFi
Protocol:	802.11b/g/n
Modulation:	CCK, DSSS, OFDM
Frequency:	-
Data Rate:	54Mbps
Power - Output:	19dBm
Sensitivity:	-98.5dBm
Serial Interfaces:	GPIO, I²C, I²S, PWM, SDIO, SPI, UART
Antenna Type:	Chip
Utilized IC / Part:	DA16200
Memory Size:	256kB ROM, 512kB SRAM
Voltage - Supply:	2.1V ~ 3.6V
Current - Receiving:	28.1mA ~ 37.4mA
Current - Transmitting:	200mA ~ 280mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	37-SMD Module

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 16 - May 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$10.2500~~	~~$10.25~~

Current price of DA16200MOD-AAC4WA32 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
