ISM20736S-TR

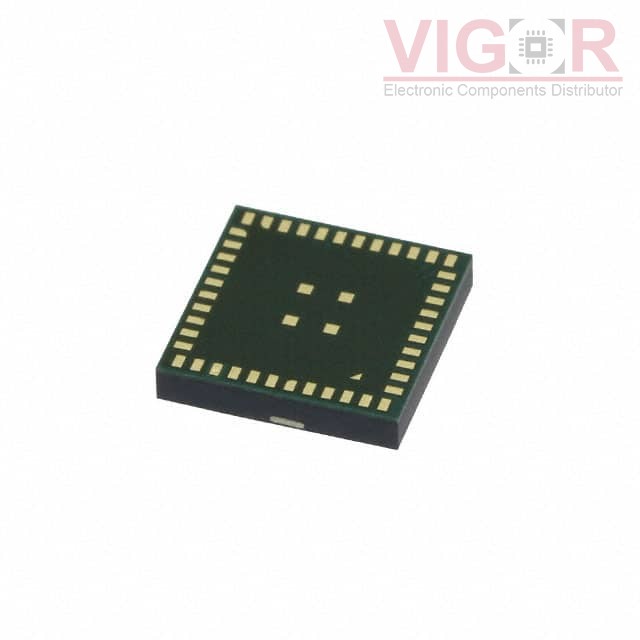

Image is for reference,
please contact us to get the real picture

Part No :: ISM20736S-TR

Manufacturer: Inventek Systems

Description: RX TXRX MOD BLUETOOTH CHIP SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: ISM20736S-TR PDF

Availability: 32 pieces

Unit Price: ~~$4.12000~~

Current price of ISM20736S-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ISM20736S-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Family/Standard:	Bluetooth
Protocol:	Bluetooth v4.0
Modulation:	-
Frequency:	2.4GHz
Data Rate:	-
Power - Output:	2dBm
Sensitivity:	-94dBm
Serial Interfaces:	ADC, GPIO, I²C, PWM, SPI, UART
Antenna Type:	Integrated, Chip
Utilized IC / Part:	BCM20736S
Memory Size:	512kB EEPROM
Voltage - Supply:	1.62V ~ 3.63V
Current - Receiving:	24mA
Current - Transmitting:	24mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	48-SMD Module

Please confirm the specifications of the products when ordering.
