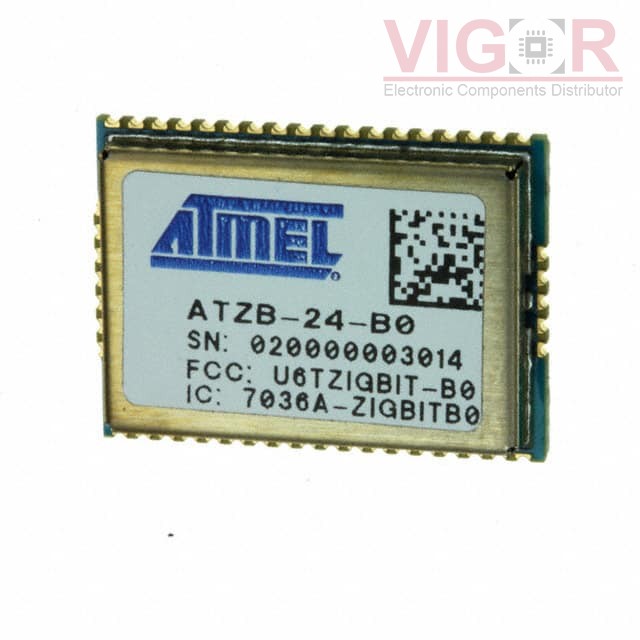

ATZB-24-B0R

Part No :: ATZB-24-B0R

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4975784

Description: RX TXRX MODULE 802.15.4 SMA SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: ATZB-24-B0R PDF

Country of origin: -

Date code: -

ATZB-24-B0R Specifications

Type	Description
Series:	ZigBit™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	-
Frequency:	2.4GHz
Data Rate:	250kbps
Power - Output:	3dBm
Sensitivity:	-101dBm
Serial Interfaces:	I²C, JTAG, SPI, UART, USART
Antenna Type:	Antenna Not Included, SMA
Utilized IC / Part:	AT86RF230
Memory Size:	128kB Flash, 4kB EEPROM, 8kB RAM
Voltage - Supply:	1.8V ~ 3.6V
Current - Receiving:	21.8mA
Current - Transmitting:	20.8mA
Mounting Type:	Surface Mount
Operating Temperature:	-20°C ~ 70°C
Package / Case:	PCB Module

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of ATZB-24-B0R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

N5150M8CD-REEL

RX TXRX MODULE BT TRC ANT TH

450-0118R

RX TXRX MOD WIFI SURFACE MOUNT

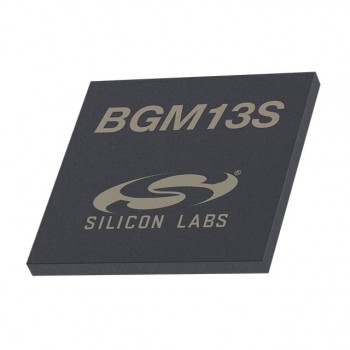

BGM13S22F512GA-V2
