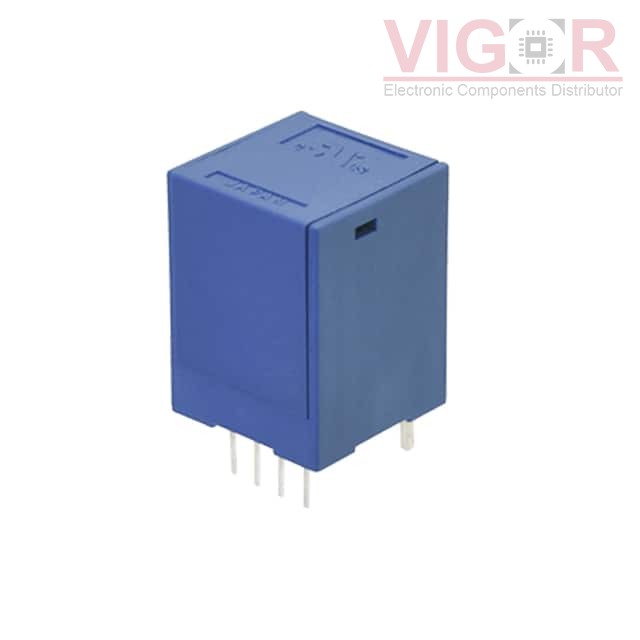

CS2005B

Part No :: CS2005B

Manufacturer: CUI Devices

VIGOR # :: 3520984

Description: CURRENT SENSOR,OPEN LOOP,20A,+5V

Catalog: Current Sensors

DataSheet: CS2005B PDF

Country of origin: -

Date code: -

CS2005B Specifications

Type	Description
Series:	CSXX05B
Package:	Tray
Part Status:	Active
For Measuring:	AC
Sensor Type:	Open Loop
Current - Sensing:	20A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	-
Frequency:	DC ~ 40kHz
Linearity:	±0.5%
Accuracy:	±2.2%
Voltage - Supply:	4.75V ~ 5.25V
Response Time:	7µs
Current - Supply (Max):	25mA
Operating Temperature:	-10°C ~ 75°C
Polarization:	Bidirectional
Mounting Type:	Through Hole
Package / Case:	Module
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 54

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$26.47~~	~~$26.47~~

Current price of CS2005B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
