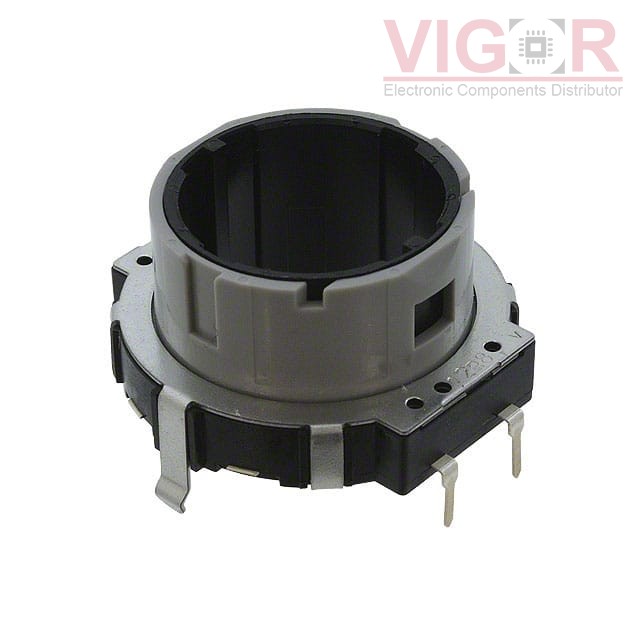

EVQ-V5Q01115B

Part No :: EVQ-V5Q01115B

Manufacturer: Panasonic

VIGOR # :: 3497489

Description: ROTARY ENCODER MECHANICAL 15PPR

Catalog: Encoders

DataSheet: EVQ-V5Q01115B PDF

Country of origin: -

Date code: -

EVQ-V5Q01115B Specifications

Type	Description
Series:	EVQV
Package:	Tray
Part Status:	Active
Encoder Type:	Mechanical
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	15
Voltage - Supply:	-
Actuator Type:	27mm Open Center
Detent:	Yes
Built in Switch:	No
Mounting Type:	PCB, Through Hole
Orientation:	Vertical
Termination Style:	PC Pin
Rotational Life (Cycles Min):	30K

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 410

Shipped from

HK warehouse

Expected Shipping Date

Jun 02 - Jun 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.3300~~	~~$3.33~~
10	~~$3.1968~~	~~$31.97~~
25	~~$2.9304~~	~~$73.26~~
80	~~$2.7972~~	~~$223.78~~
160	~~$2.6640~~	~~$426.24~~
320	~~$2.3310~~	~~$745.92~~
560	~~$2.2644~~	~~$1 268.06~~
1040	~~$1.9314~~	~~$2 008.66~~
5040	~~$1.7316~~	~~$8 727.26~~

Current price of EVQ-V5Q01115B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
