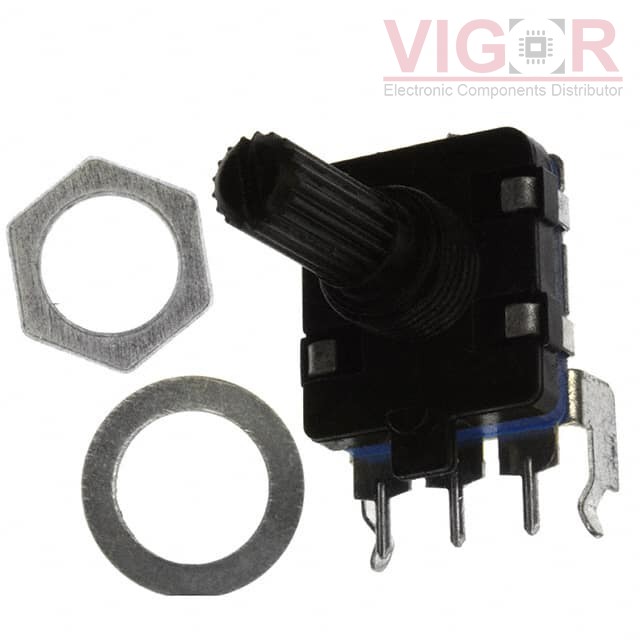

ACZ16NBR1E-20KQA1-24C

Part No :: ACZ16NBR1E-20KQA1-24C

Manufacturer: CUI Devices

VIGOR # :: 3497992

Description: ROTARY ENCODER INCREMENT 24PPR

Catalog: Encoders

DataSheet: ACZ16NBR1E-20KQA1-24C PDF

Country of origin: -

Date code: -

ACZ16NBR1E-20KQA1-24C Specifications

Type	Description
Series:	ACZ16
Package:	Box
Part Status:	Active
Encoder Type:	Incremental
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	24
Voltage - Supply:	5V
Actuator Type:	6mm Dia Knurled End
Detent:	Yes
Built in Switch:	No
Mounting Type:	Panel, PCB Through Hole
Orientation:	Right Angle
Termination Style:	PC Pin
Rotational Life (Cycles Min):	100K

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 04 - Jan 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.02~~	~~$1.02~~
1020	~~$0.92~~	~~$938.24~~

Current price of ACZ16NBR1E-20KQA1-24C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
