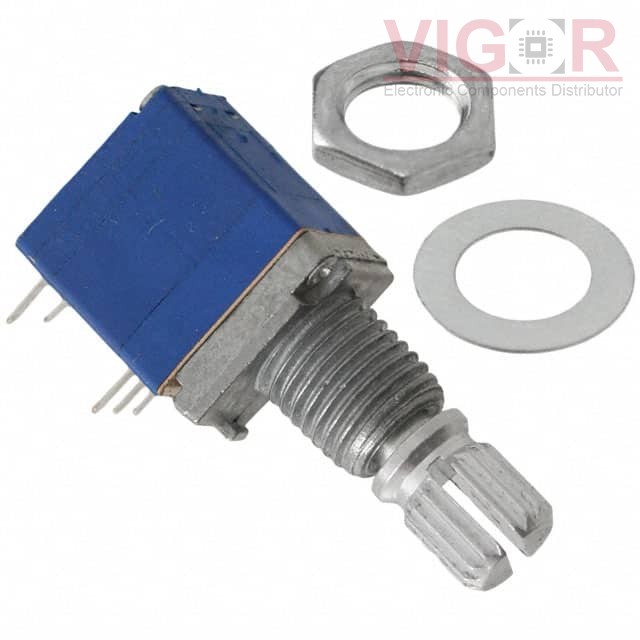

ACZ09BR2E-15KQA1-20C10P

Part No :: ACZ09BR2E-15KQA1-20C10P

Manufacturer: CUI Devices

VIGOR # :: 3498570

Description: ROTARY ENCODER INCREMENT 10PPR

Catalog: Encoders

DataSheet: ACZ09BR2E-15KQA1-20C10P PDF

Country of origin: -

Date code: -

ACZ09BR2E-15KQA1-20C10P Specifications

Type	Description
Series:	ACZ09
Package:	Box
Part Status:	Active
Encoder Type:	Incremental
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	10
Voltage - Supply:	5V
Actuator Type:	6mm Dia Knurled End
Detent:	Yes
Built in Switch:	Yes
Mounting Type:	Panel, PCB Through Hole
Orientation:	Right Angle
Termination Style:	PC Pin
Rotational Life (Cycles Min):	30K

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 05 - Jan 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.07~~	~~$2.07~~
1020	~~$2.07~~	~~$2 116.30~~

Current price of ACZ09BR2E-15KQA1-20C10P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
