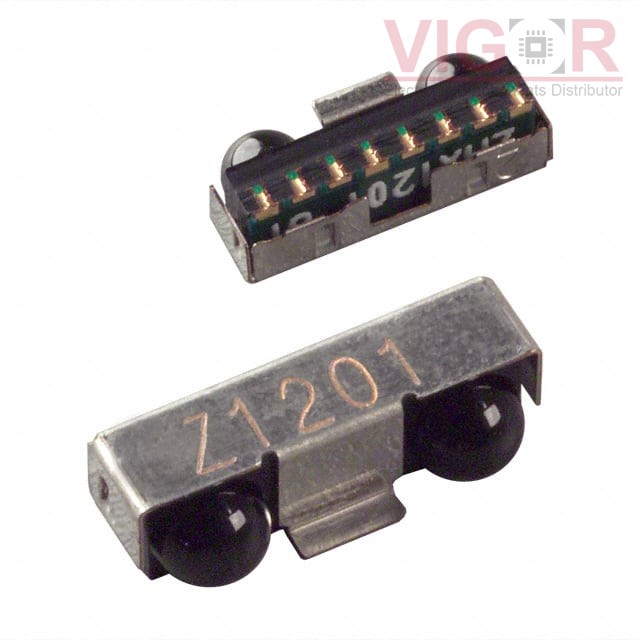

ZHX1201MB115THTR

Part No :: ZHX1201MB115THTR

Manufacturer: Zilog / Littelfuse

VIGOR # :: 4775945

Description: IRDA MODULE 115.2KBPS 8SMD

Catalog: IrDA Transceiver Modules

DataSheet: ZHX1201MB115THTR PDF

Country of origin: -

Date code: -

ZHX1201MB115THTR Specifications

Type	Description
Series:	SIR UltraSlim™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Data Rate:	115.2kbs (SIR)
Voltage - Supply:	2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C:	100 µA
Link Range, Low Power:	20cm
Orientation:	Side View
Operating Temperature:	-30°C ~ 85°C
Size:	8.0mm x 3.0mm x 2.5mm
Standards:	IrPHY 1.4
Shutdown:	Yes

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 13 - Jan 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of ZHX1201MB115THTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TFDU6300-TR3

TXRX IRDA 4MBIT 2.5MM SIDE 8-SMD

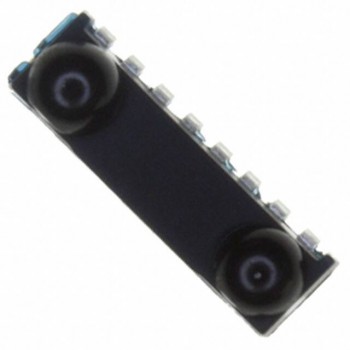

TFDU4300-TR3
