AK8963N

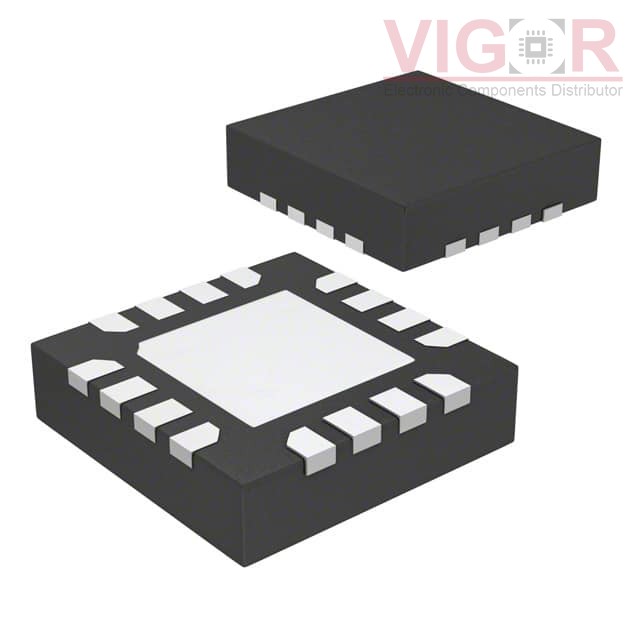

Image is for reference,
please contact us to get the real picture

Part No :: AK8963N

Manufacturer: Asahi Kasei Microdevices / AKM Semiconductor

Description: SENSOR HALL I2C/SPI 16QFN

Catalog: Magnetic Sensors - Linear, Compass (ICs)

DataSheet: AK8963N PDF

Availability: 48 pieces

Unit Price: ~~$12.25000~~

Current price of AK8963N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AK8963N Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Technology:	Hall Effect
Axis:	X, Y, Z
Output Type:	I²C, SPI
Sensing Range:	±4.9mT
Voltage - Supply:	2.4V ~ 3.6V
Current - Supply (Max):	10mA
Current - Output (Max):	-
Resolution:	16 b
Bandwidth:	-
Operating Temperature:	-30°C ~ 85°C (TA)
Features:	Sleep Mode
Supplier Device Package:	16-QFN (3x3)
Mounting Type:	Surface Mount
Package / Case:	16-WFQFN Exposed Pad

Please confirm the specifications of the products when ordering.
