AH8501-FDC-7

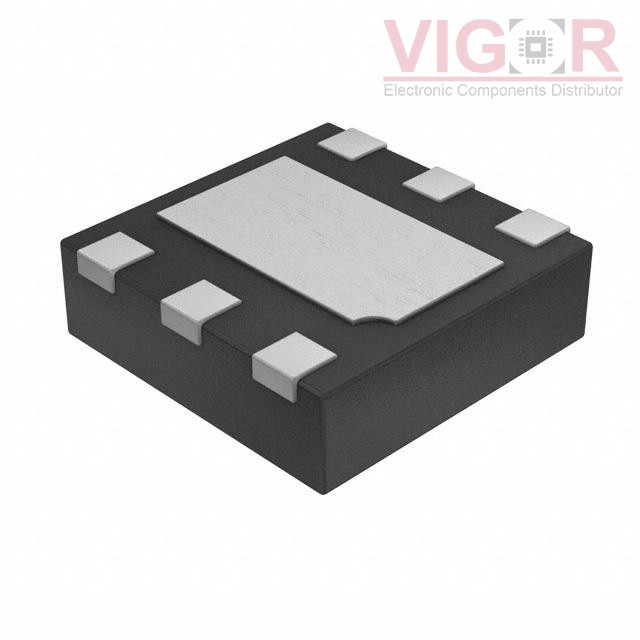

Image is for reference,
please contact us to get the real picture

Part No :: AH8501-FDC-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: SENSOR HALL ANALOG 6UDFN

Catalog: Magnetic Sensors - Linear, Compass (ICs)

DataSheet: AH8501-FDC-7 PDF

Availability: 1831 pieces

Unit Price: ~~$1.30000~~

Current price of AH8501-FDC-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH8501-FDC-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Hall Effect
Axis:	Single
Output Type:	Analog Voltage
Sensing Range:	±40mT
Voltage - Supply:	1.6V ~ 3.6V
Current - Supply (Max):	1.5mA
Current - Output (Max):	10mA
Resolution:	8 b
Bandwidth:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Features:	Sleep Mode
Supplier Device Package:	U-DFN2020-6 (Type C)
Mounting Type:	Surface Mount
Package / Case:	6-UDFN Exposed Pad

Please confirm the specifications of the products when ordering.
