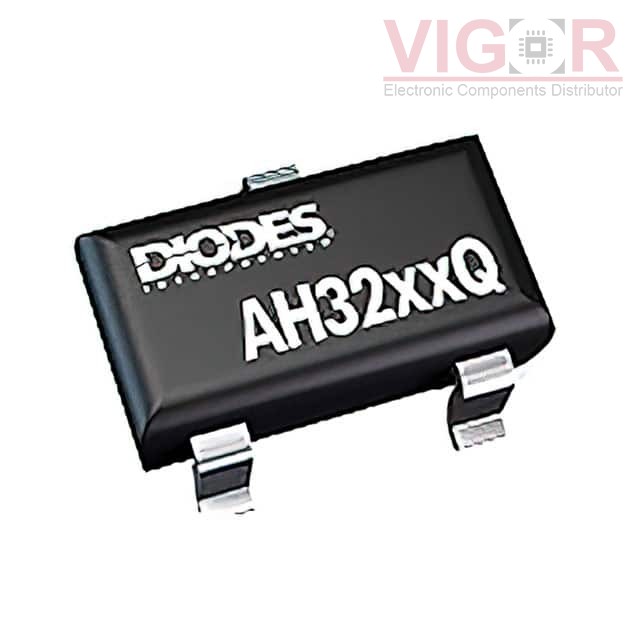

AH3270Q-W-7

Part No :: AH3270Q-W-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: HALLLATCHSWITCHSC59T&R3K

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH3270Q-W-7 PDF

Availability: 3000 pieces

Unit Price: ~~$1.06000~~

Current price of AH3270Q-W-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH3270Q-W-7 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Latch
Technology:	Hall Effect
Polarization:	South Pole
Sensing Range:	1.8mT Trip, -1.8mT Release
Test Condition:	25°C
Voltage - Supply:	2.7V ~ 27V
Current - Supply (Max):	-
Current - Output (Max):	-
Output Type:	Latch
Features:	Temperature Compensated
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Supplier Device Package:	SC-59
Package / Case:	TO-236-3, SC-59, SOT-23-3
