AH1815-Z-7

Part No :: AH1815-Z-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3538779

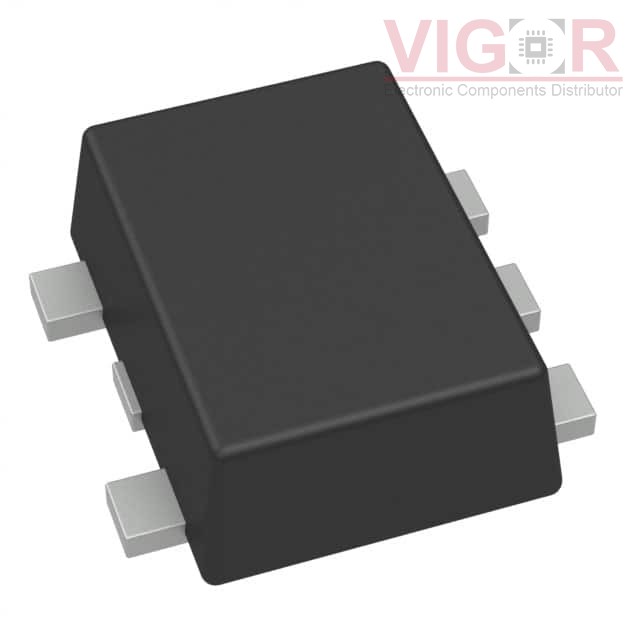

Description: MAGNETIC SWITCH OMNIPOLAR SOT553

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH1815-Z-7 PDF

Country of origin: -

Date code: -

AH1815-Z-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±54mT Trip, ±49mT Release
Test Condition:	-40°C ~ 125°C
Voltage - Supply:	2.5V ~ 5.5V
Current - Supply (Max):	12mA
Current - Output (Max):	2.5mA
Output Type:	Open Drain
Features:	Sleep Mode
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-553
Package / Case:	SOT-553
