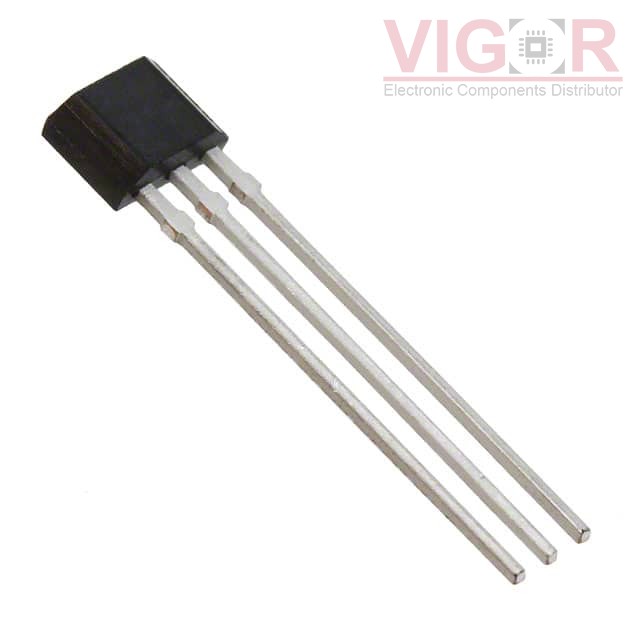

S-5742RBH1B-Y3Z2U

Part No :: S-5742RBH1B-Y3Z2U

Manufacturer: ABLIC U.S.A. Inc.

Description: BIPOLAR HALL EFFECT LATCH IC

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: S-5742RBH1B-Y3Z2U PDF

Availability: 1582 pieces

Unit Price: ~~$1.46000~~

Current price of S-5742RBH1B-Y3Z2U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

S-5742RBH1B-Y3Z2U Specifications

Type	Description
Series:	S-5742B
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Function:	Bipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	4.5mT Trip, -4.5mT Release
Test Condition:	25°C
Voltage - Supply:	3.5V ~ 26V
Current - Supply (Max):	4mA
Current - Output (Max):	20mA
Output Type:	Open Drain
Features:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Supplier Device Package:	TO-92S
Package / Case:	TO-226-3, TO-92-3 Short Body
