AH3564Q-P-A

Part No :: AH3564Q-P-A

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3539576

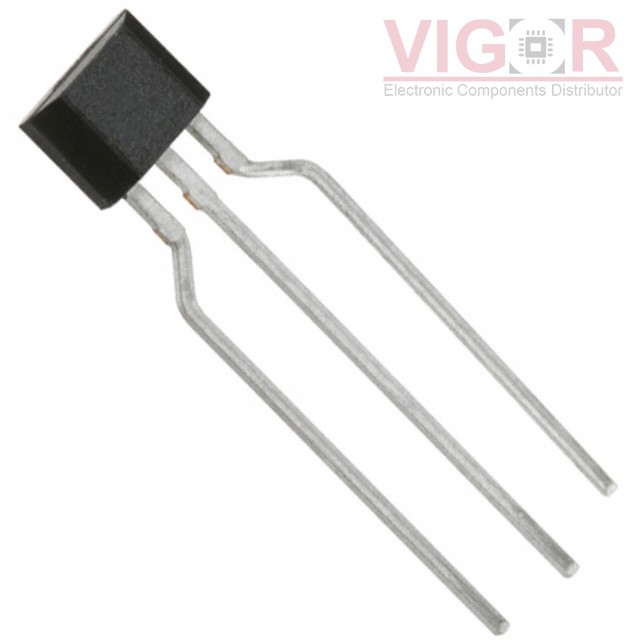

Description: HALL OMNIPOLAR SWITCH,SIP-3,AMMO

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH3564Q-P-A PDF

Country of origin: -

Date code: -

AH3564Q-P-A Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±6mT Trip, ±1mT Release
Test Condition:	-40°C ~ 125°C
Voltage - Supply:	3V ~ 28V
Current - Supply (Max):	4mA
Current - Output (Max):	55mA
Output Type:	Open Drain
Features:	Temperature Compensated
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	3-SIP
Package / Case:	3-SIP, Formed Leads
