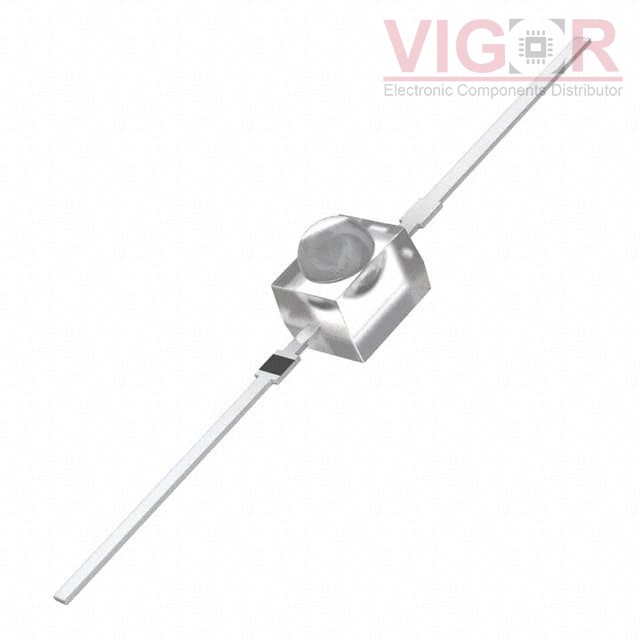

PNZ14700S

Part No :: PNZ14700S

Manufacturer: Panasonic

VIGOR # :: 4776330

Description: SENSOR PHOTO 800NM TOP VIEW AXL

Catalog: Optical Sensors - Phototransistors

DataSheet: PNZ14700S PDF

Country of origin: -

Date code: -

PNZ14700S Specifications

Type	Description
Series:	-
Package:	-
Part Status:	Obsolete
Voltage - Collector Emitter Breakdown (Max):	20 V
Current - Collector (Ic) (Max):	20 mA
Current - Dark (Id) (Max):	500 nA
Wavelength:	800nm
Viewing Angle:	48°
Power - Max:	50 mW
Mounting Type:	Through Hole
Orientation:	Top View
Operating Temperature:	-
Package / Case:	Axial, Flat Leads
