PNZ109F

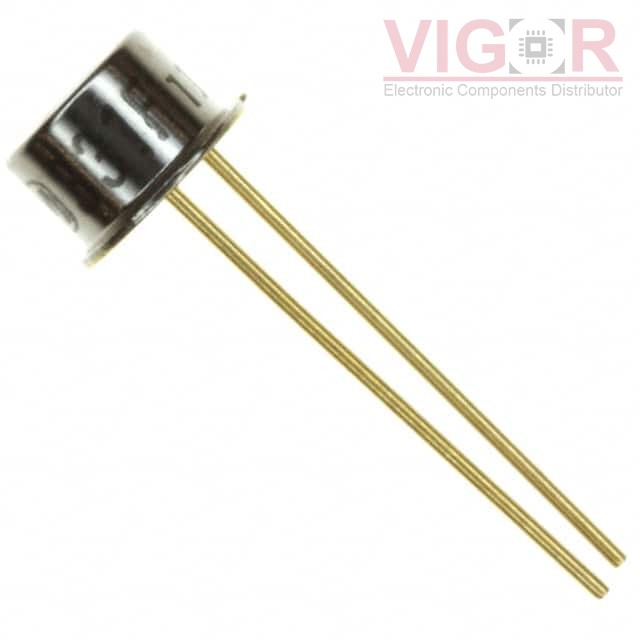

Image is for reference,
please contact us to get the real picture

Part No :: PNZ109F

Manufacturer: Panasonic

Description: SENSOR PHOTO 900NM TOP TO206AA

Catalog: Optical Sensors - Phototransistors

DataSheet: PNZ109F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PNZ109F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PNZ109F Specifications

Type	Description
Series:	-
Package:	-
Part Status:	Obsolete
Voltage - Collector Emitter Breakdown (Max):	20 V
Current - Collector (Ic) (Max):	30 mA
Current - Dark (Id) (Max):	2 µA
Wavelength:	900nm
Viewing Angle:	80°
Power - Max:	150 mW
Mounting Type:	Through Hole
Orientation:	Top View
Operating Temperature:	-
Package / Case:	TO-206AA, TO-18-3 Metal Can
