AMS22B5A1BHASL309N

Part No :: AMS22B5A1BHASL309N

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 3528301

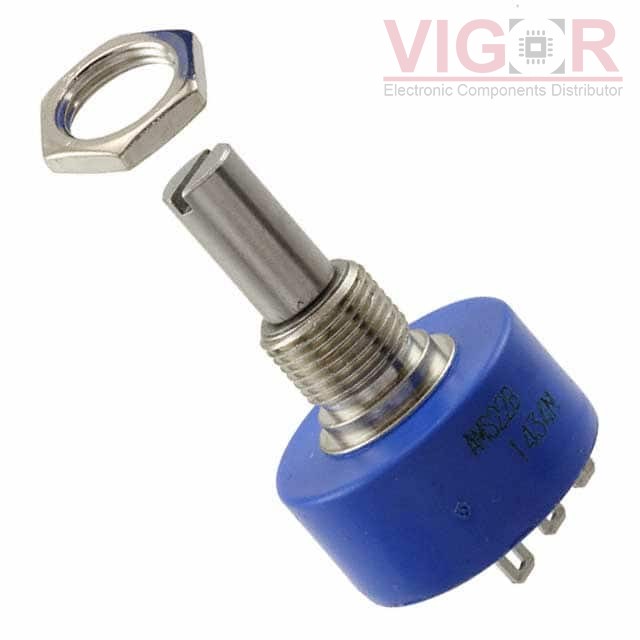

Description: SENSOR ROTARY 90DEG SOLDER LUG

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: AMS22B5A1BHASL309N PDF

Country of origin: -

Date code: -

AMS22B5A1BHASL309N Specifications

Type	Description
Series:	AMS22B
Package:	Bulk
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	10° ~ 90°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	Slotted Shaft
Linearity:	±0.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Module, Slotted Shaft
Supplier Device Package:	-
