SP1-12

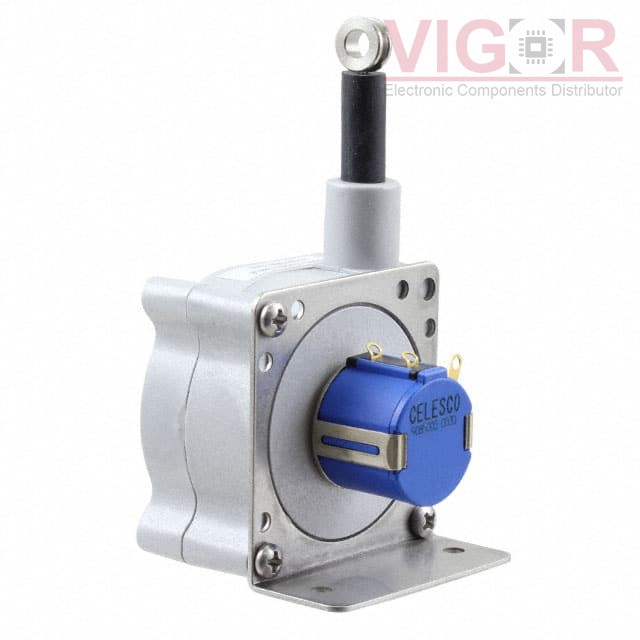

Product image
Product thumb
Part No :

SP1-12

Manufacturer
TE Connectivity Measurement Specialties
VIGOR # :

3528825

Description
SENSOR LINEAR 317MM SOLDER LUG
Catalog
Position Sensors - Angle, Linear Position Measuring
DataSheet
SP1-12 PDF
Country of origin
-
Date code
-
ads
SP1-12 Specifications
Type Description
Series:SP1
Package:Box
Part Status:Active
For Measuring:Linear Position
Technology:Resistive
Rotation Angle - Electrical, Mechanical:-
Linear Range:0 ~ 317mm (0 ~ 12.5")
Output:Analog Voltage
Output Signal:-
Actuator Type:String Potentiometer
Linearity:-
Resistance:10 kOhms
Resistance Tolerance:±10%
Voltage - Supply:30V
Mounting Type:Panel Mount
Termination Style:Solder Lug
Operating Temperature:-18°C ~ 70°C
Package / Case:Box with Connector
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 06 - Jan 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $200.37 $200.37
5 $187.84 $939.22
10 $181.58 $1 815.82
25 $175.32 $4 383.00
50 $172.19 $8 609.47

Current price of SP1-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
