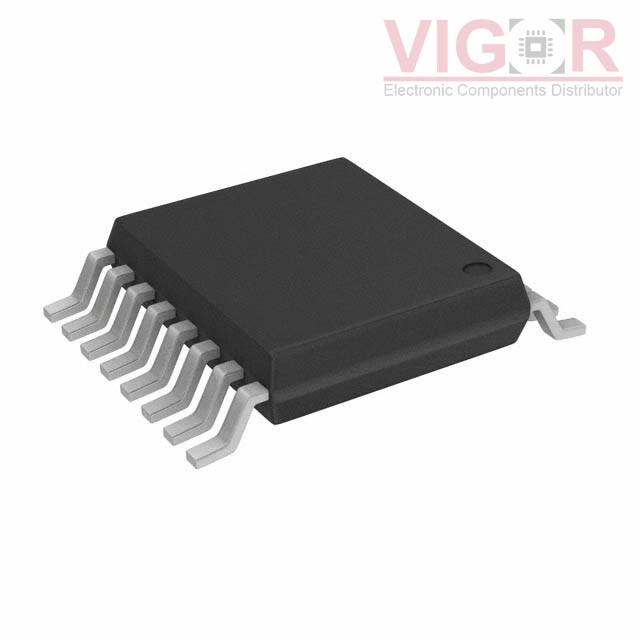

TLE5309DE1211XUMA1

Part No :: TLE5309DE1211XUMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3529112

Description: IC ANGLE SENSOR ANLG TDSO16

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: TLE5309DE1211XUMA1 PDF

Country of origin: Confirming

Date code: TBC

TLE5309DE1211XUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	Angle
Technology:	Magnetoresistive
Rotation Angle - Electrical, Mechanical:	0° ~ 360°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Cosine, Sine
Actuator Type:	External Magnet, Not Included
Linearity:	-
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	3V ~ 3.6V, 4.5V ~ 5.5V
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Operating Temperature:	-40°C ~ 125°C (TA)
Package / Case:	16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package:	PG-TDSO-16
